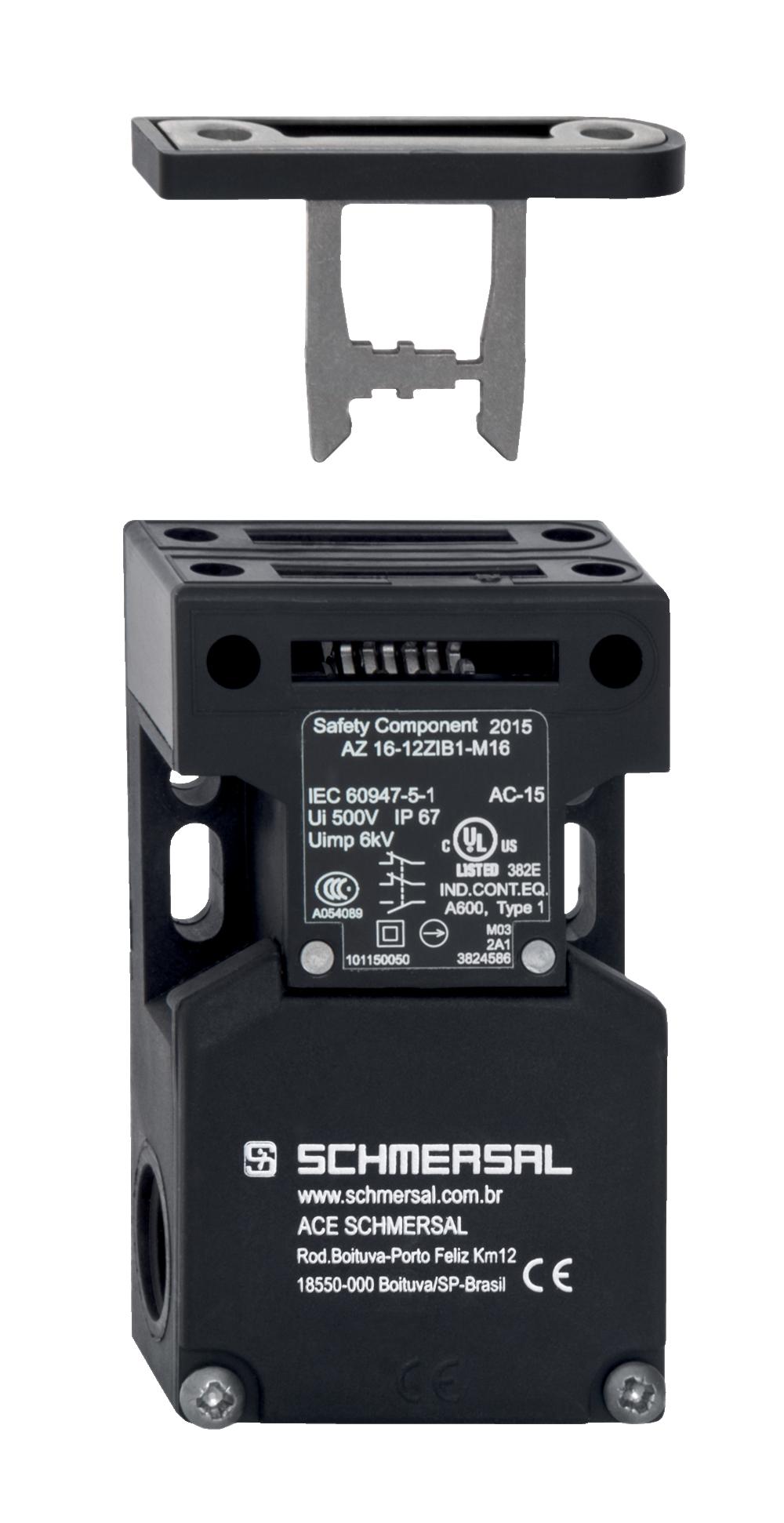

SCHMERSAL AZ 16-12ZIB1-M16-2053SAFETY SWITCHWITH SEPARATE ACTUATOR 101150053

Product Code: 101150053

Technical Specifications

Actuator Type Straight
Housing Material Plastic, Glass-fibre Reinforced Thermoplastic, Self-extinguishing
Actuator Material Stainless Steel
Maximum Storage Temperature (°C) 85
Minimum Ambient Temperature (°C) -30
Minimum Storage Temperature (°C) -40
Brand SCHMERSAL
Included Tamperproof Screws
Cable Entry 3 x M16 x 1.5
Maximum Ambient Temperature (°C) 80
Maximum Cable Cross Section (mm²) 2.5
Minimum Cable Cross Section (mm²) 0.75
Contact Material Silver
Maximum Actuating Speed (m/s) 2
Maximum Fuse Rating 6 A gG D-fuse
Minimum Actuating Radius (mm) 250 mm
Minimum Mechanical Life 1000000 Operations
No. of Auxiliary Contacts 1
No. of Safety Contacts 2
Positive Break Travel (mm) 8
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 500
Rated Operational Current AC-15 (A) Safety Contacts - 4A
Rated Operational Current DC-13 (A) Safety Contacts - 4A
Rated Short-circuit Current (A) 1000
Switching Element NO Contact, NC Contact
Switching Frequency 4000/h
Switching Principle Slow Action, Positive Break NC Contact
Termination Screw Terminals
Thermal Test Current (A) 10
Sensor Length (mm) 30
Sensor Width (mm) 52
Sensor Height (mm) 90
Degree of Protection IP67
Pollution Degree 3
Standards and Approvals EN IEC 60947-5-1, EN ISO 13849-1
