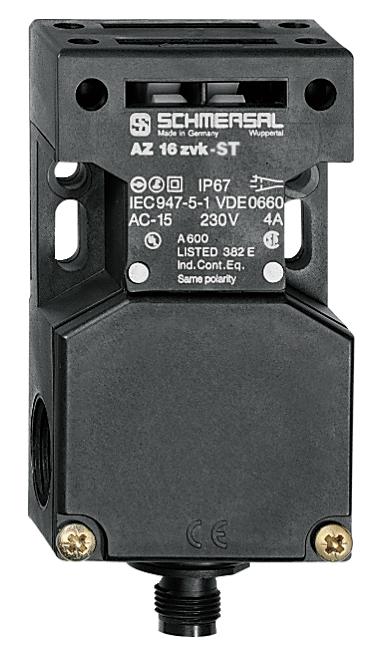

SCHMERSAL AZ16ZVK-ST SAFETY SWITCH WITH SEPARATE ACTUATOR 101143122

Product Code: 101143122

The Schmersal AZ16 Series safety switch is a robust machine safety solution featuring a thermoplastic enclosure and a separate actuator for reliable operation. This switch includes both an auxiliary contact and a safety contact, ensuring secure circuit control. It comes equipped with an M12 4-pole connector plug with A-coding for straightforward electrical connectivity. The switching elements consist of one normally open (NO) and one normally closed (NC) contact, accommodating various circuit designs. With a thermal test current of 10 A, it operates efficiently under utilisation categories AC-15 at 230 VAC, 4 A and DC-13 at 24 VDC, 4 A. Engineered for durability and safety compliance, this switch is an essential component in any machine safety system.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Temperature (°C) 80
Minimum Temperature (°C) -30
Series AZ16
