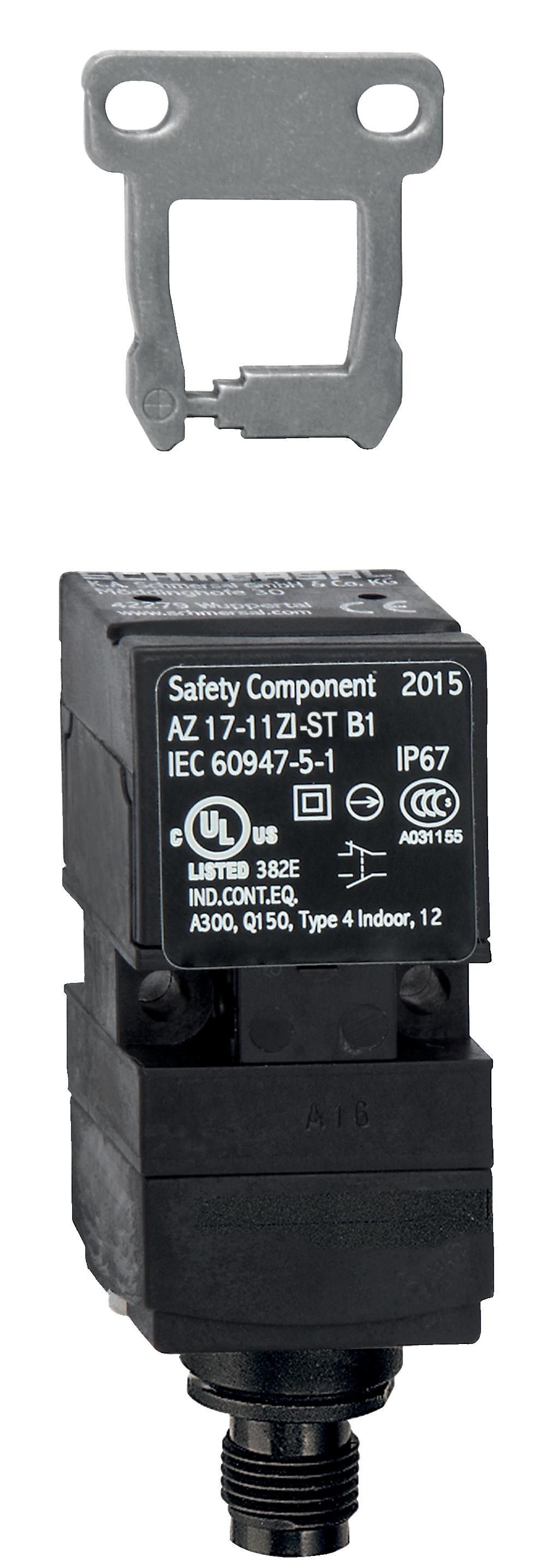

SCHMERSAL AZ 17-11ZI-ST B1 SAFETY SWITCH WITH SEPARATE ACTUATOR 101144076

Product Code: 101144076

The Schmersal AZ17 safety switch is engineered for machine safety applications, particularly suitable for sliding doors. This robust switch features a thermoplastic enclosure and comes with a separate actuator for ease of use. It includes one auxiliary contact and one safety contact, ensuring reliable operation. The switch is equipped with an M12 terminal connector and offers both NO and NC contact switching elements. With a thermal test current of 10 A, it operates efficiently under utilisation category AC-15 at 230 VAC with 4 A, as well as under DC-13 at 24 VDC with 4 A. This makes the AZ17 series an adaptable solution for safeguarding equipment while maintaining high performance standards.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Temperature (°C) 80
Minimum Temperature (°C) -30
Series AZ17
