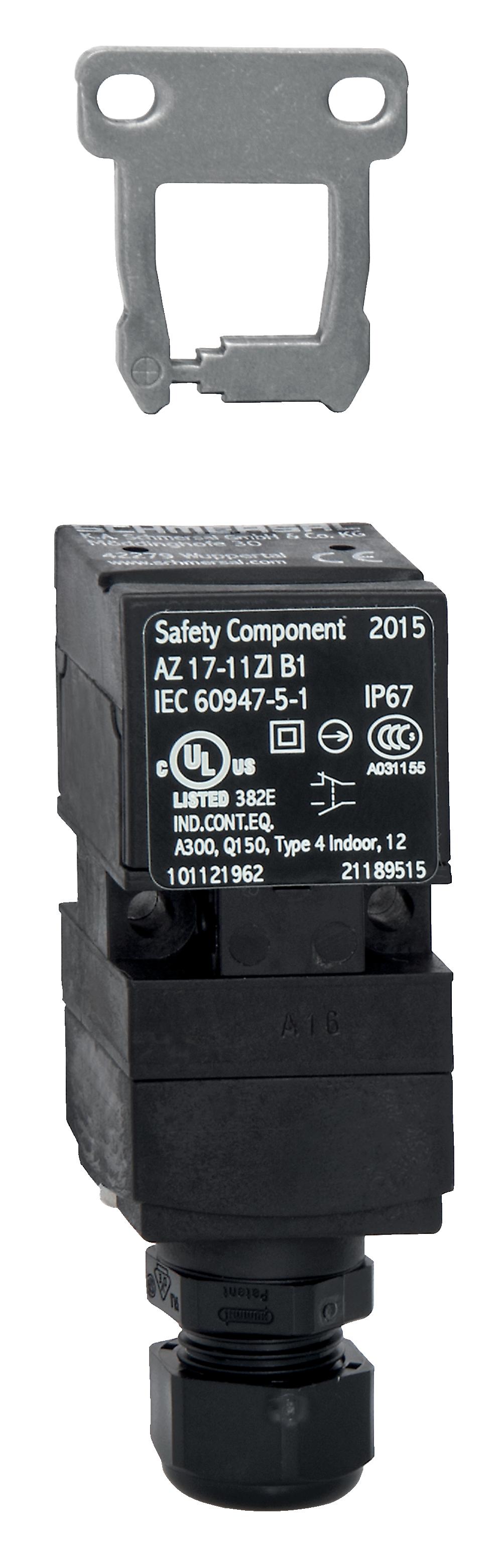

SCHMERSAL AZ17-11ZRI-B5 SAFETY SWITCH WITH SEPARATE ACTUATOR 101136305

Product Code: 101136305

The Schmersal AZ17 safety switch is a robust solution designed for machine safety applications, particularly suitable for hinged guards. This switch features a durable thermoplastic enclosure and boasts a higher latching force to ensure secure guarding. It comes equipped with one auxiliary contact and one safety contact, ensuring reliable connectivity. The terminal connector utilizes an IDC method of termination for efficient installation. With both NO and NC contact switching elements, the switch can handle a thermal test current of 10 A. It operates effectively within utilisation categories AC-15 at 230 VAC with a 4 A rating and DC-13 at 24 VDC also with a 4 A rating, accommodating various electrical requirements. Engineered for dependability, the Schmersal AZ17 is an essential component in maintaining machine safety standards.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Temperature (°C) 80
Minimum Temperature (°C) -30
Series AZ17
