SCHMERSAL AZM161 CAP SET BLANKING SLOTS SOLENOID INTERLOCK 101145379

Product Code: 101145379

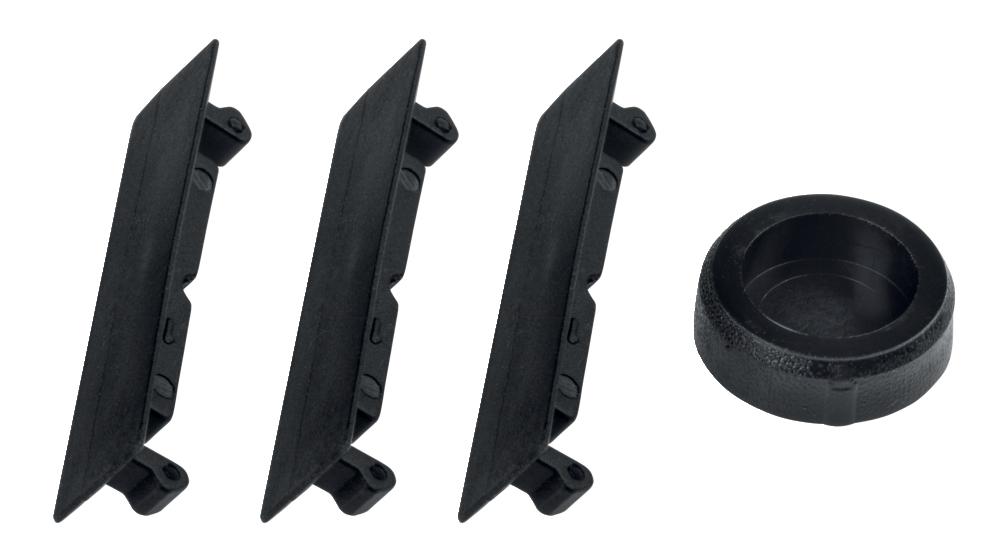

Ensure the safety and integrity of your machinery with Schmersal's slot sealing plugs, designed specifically for the AZM161 series of solenoid interlocks. These durable plugs offer a simple clip-in fitting solution to securely cover any unused actuator slots, maintaining the cleanliness and functionality of your equipment within the machine safety category. Keep your systems protected and compliant with these essential accessories from a trusted brand in industrial safety.

Technical Specifications

Cable Note All indications including the conductor ferrules.
Coding Level According to EN ISO 14119 Low
eCl@ss Number, Version 11.0 27-37-13-02
eCl@ss Number, Version 9.0 27-37-12-11
ETIM 6.0 EC000223
ETIM 7.0 EC001038
Gross Weight (g) 272.29
Housing Construction Form Norm construction design
Maximum Actuating Speed (m/s) 0.5
Maximum Fuse Rating 6 A gG D-fuse
Minimum Actuating Speed (mm/min) 1
Minimum Ambient Temperature (°C) -30
Minimum Positive Break Force (N) 19
Net Weight (g) 67
No. of Auxiliary Contacts 1
No. of Safety Contacts 2
Rated Short-circuit Current (A) 1000
Resistance to Shock (g/ms) 30 / 11
Sensor Height (mm) 107
Sensor Length (mm) 57.25
Switching Element 1 NO contact, 2 NC contacts
Switching Principle Slow action
Thermal Test Current (A) 0.25
Utilisation Category DC-13 | AC-15
Utilisation Category DC-13 0.05 A
Wire Cross-Section 0.34 mm
Working Principle Electromechanical
Brand SCHMERSAL
Actuator Type Roller lever
Contact Material Silver
Degree of Protection IP67 / IP65
EAN 4030660000000
Enclosure Coating Material Painted
Enclosure Material Glass-fibre, reinforced thermoplastic
Maximum Ambient Temperature (°C) 70
Maximum Cable Cross Section (mm²) 2.5
Minimum Cable Cross Section (mm²) 0.25
Minimum Mechanical Life 10000000 Operations
Overvoltage Category 3
Rated Impulse Withstand Voltage (kV) 2.5
Rated Insulation Voltage (V) 250
Series AZM161
Standards EN IEC 60947-5-1 / BG-GS-ET-15
Storage Temperature (°C) -40 to 85
Terminal Type Screw terminals M20 x 1.5
