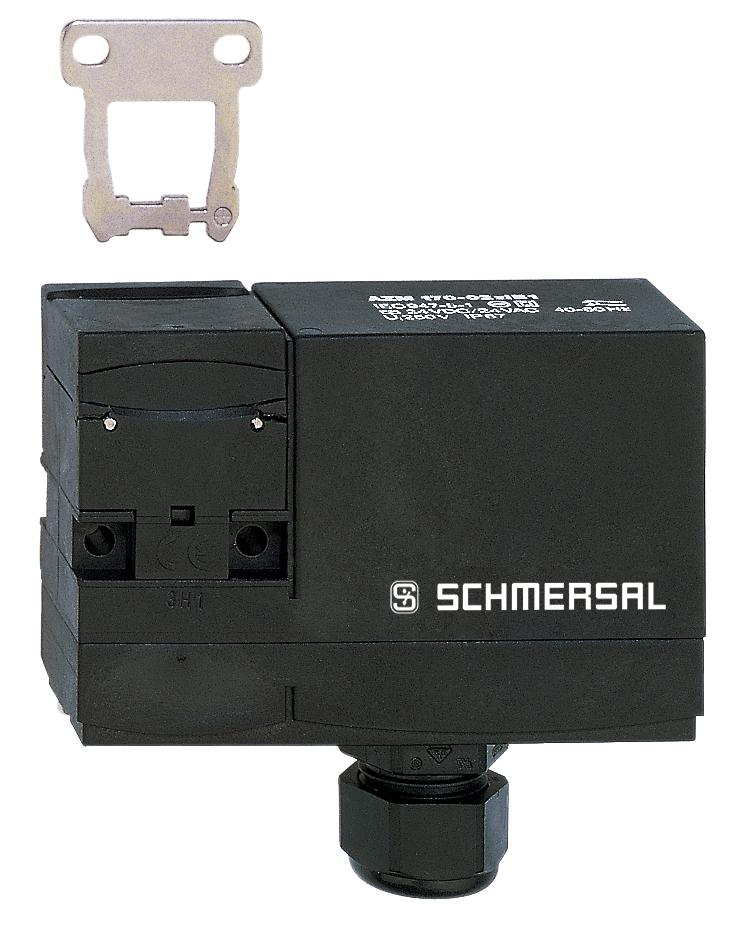

SCHMERSAL AZM 170-02ZRI-B1-2197 24VAC/DC SOLENOID INTERLOCK 101144275

Product Code: 101144275

The Schmersal AZM170 series solenoid interlock is a robust safety solution designed for sliding doors, ensuring secure machine access control. This device requires power to unlock and features a convenient manual release. It operates with two actuating directions and includes two safety contacts, but does not have auxiliary contacts. The interlock utilizes an IDC method for terminal connection and is equipped with normally closed (NC) openers. With a thermal test current of 6 A and a rated control voltage of 24 VAC/DC, it meets utilisation categories AC-15 at 230 VAC, 4 A, and DC-13 at 24 VDC, 4 A. Engineered for machine safety applications, this type of solenoid interlock offers reliability in securing hazardous areas.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Temperature (°C) 60
Minimum Temperature (°C) -25
Series AZM170
