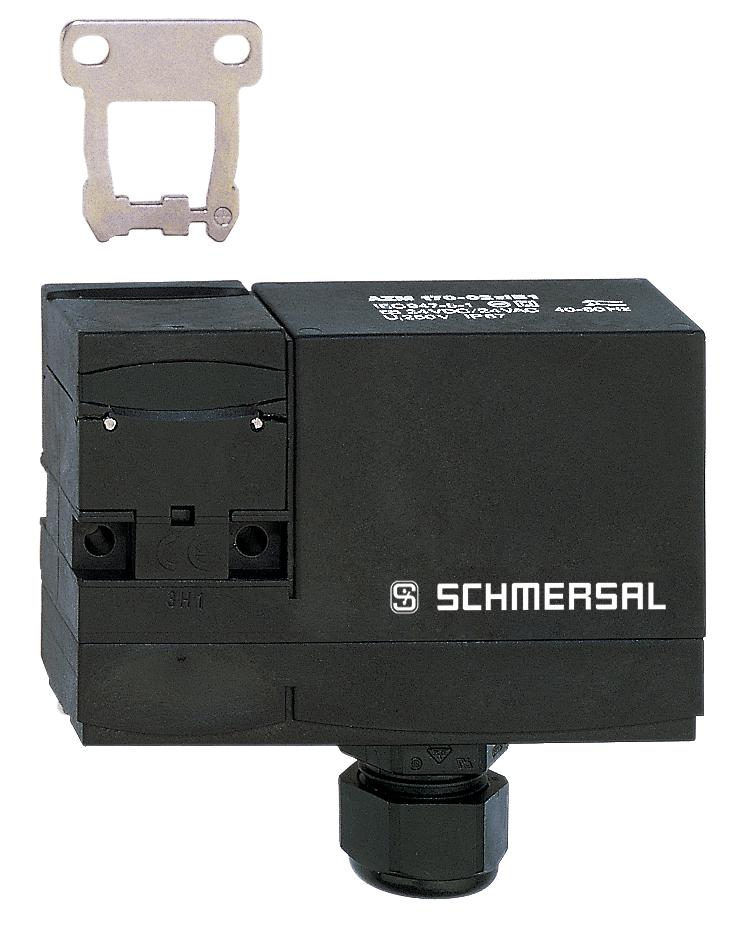

SCHMERSAL AZM 170-02ZRI-B6L 24VAC/DC SOLENOID INTERLOCK 101140810

Product Code: 101140810

The Schmersal AZM170 series solenoid interlock is a compact safety solution designed for machines requiring very small actuating radii. This power-to-unlock device features a manual release and operates with two actuating directions. It comes equipped with two safety contacts but does not include auxiliary contacts. The interlock utilizes an IDC method for terminal connection and functions as an opener (NC) with a thermal test current of 6 A. Optimized for control systems, it has a rated control voltage of 24 VAC/DC, can handle up to 230 VAC at 4 A in AC-15 utilization category, and up to 24 VDC at 2.5 A in DC-13 utilization category. Engineered for reliability in machine safety applications, the AZM170 is part of Schmersal's commitment to workplace protection.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Temperature (°C) 60
Minimum Temperature (°C) -25
Series AZM170
