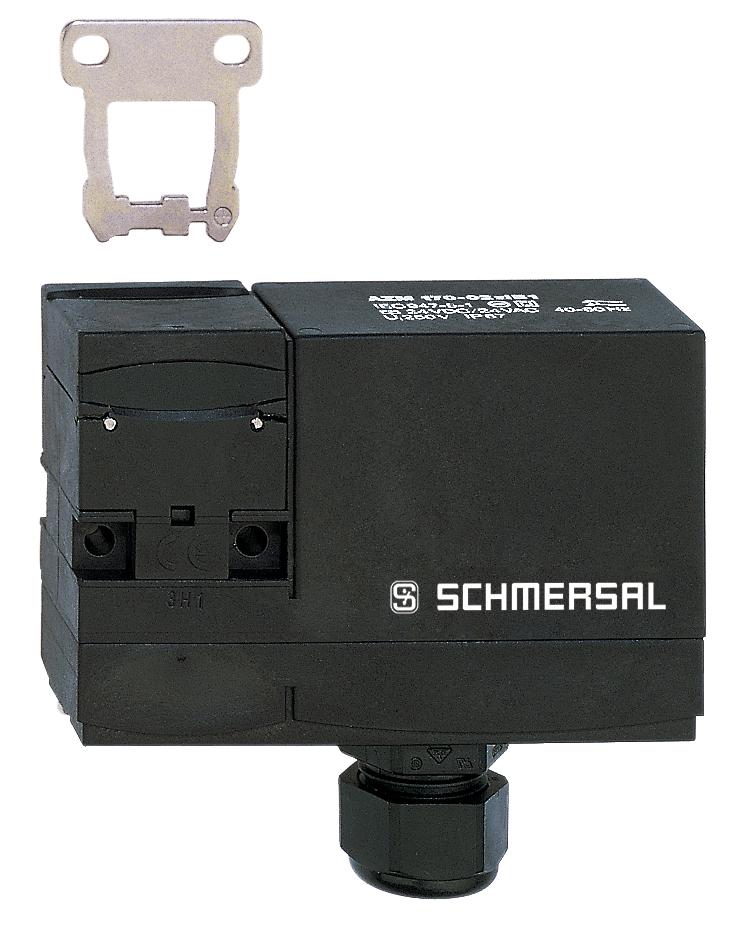

SCHMERSAL AZM170-02ZRIA-B5 24VAC/DC SOLENOID INTERLOCK 101140804

Product Code: 101140804

Ensure the safety of your machinery with the Schmersal AZM170 series solenoid interlock. Designed for hinged guards, this power-to-lock device features a manual release for convenience and flexibility in operation. It operates across two actuating directions without auxiliary contacts but includes two safety contacts for secure machine shut-off. The interlock utilizes an IDC method of termination for reliable connectivity and is equipped with a normally closed (NC) opener. With a thermal test current of 6 A and a rated control voltage of 24 VAC/DC, it meets utilisation categories AC-15 at 230 VAC, 4 A, and DC-13 at 24 VDC, 4 A. This product falls under the machine safety category and is specifically tailored to provide robust protection where it's needed most.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Temperature (°C) 60
Minimum Temperature (°C) -25
Series AZM170
