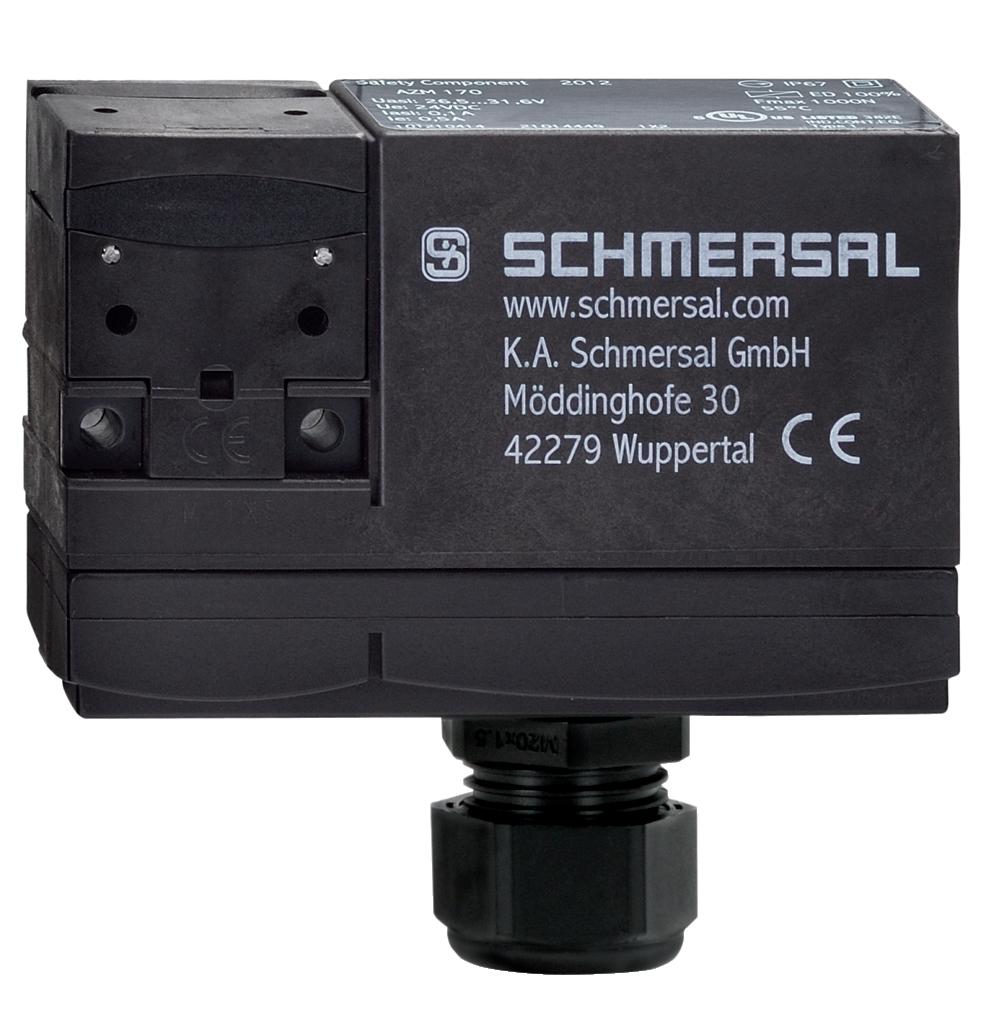

SCHMERSAL AZM 170-02ZRK 24VAC/DC GB 997SOLENOID INTERLOCK 101143998

Product Code: 101143998

Technical Specifications

Brand SCHMERSAL
No. of Actuating Directions 2
Contact Material Silver
Degree of Protection IP67
Holding Force (N) 1000
Housing Material Plastic, Glass-fibre Reinforced Thermoplastic, Self-extinguishing
Latching Force (N) 30
Maximum Actuating Speed (m/s) 2
Maximum Ambient Temperature (°C) 60
Maximum Cable Cross Section (mm²) 1 x 1.0 , flexible
Maximum Fuse Rating 6 A gG D-fuse
Maximum Holding Force (N) 1300
Maximum Storage Temperature (°C) 85
Minimum Ambient Temperature (°C) -25
Minimum Cable Cross Section (mm²) 1 x 0.75
Minimum Mechanical Life 1000000 Operations
Minimum Positive Break Force (N) 17
Minimum Storage Temperature (°C) 25
No. of Auxiliary Contacts 1
No. of Safety Contacts 2
Positive Break Travel (mm) 11
Power Consumption (W) 12
Rated Control Voltage AC/DC (V) 24
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 250
Rated Operational Current AC-15 (A) Safety Contacts - 4A
Rated Operational Current DC-13 (A) Safety Contacts - 2.5A
Rated Short-circuit Current (A) 1000
Release Type Manual
Sensor Height (mm) 84
Sensor Length (mm) 30
Sensor Width (mm) 90
Standards and Approvals EN IEC 60947-5-1, EN ISO 13849-1
Switching Element Opener (NC)
Switching Frequency 1000/h
Switching Principle Slow Action
Termination IDC Method of Termination
Thermal Test Current (A) 6
