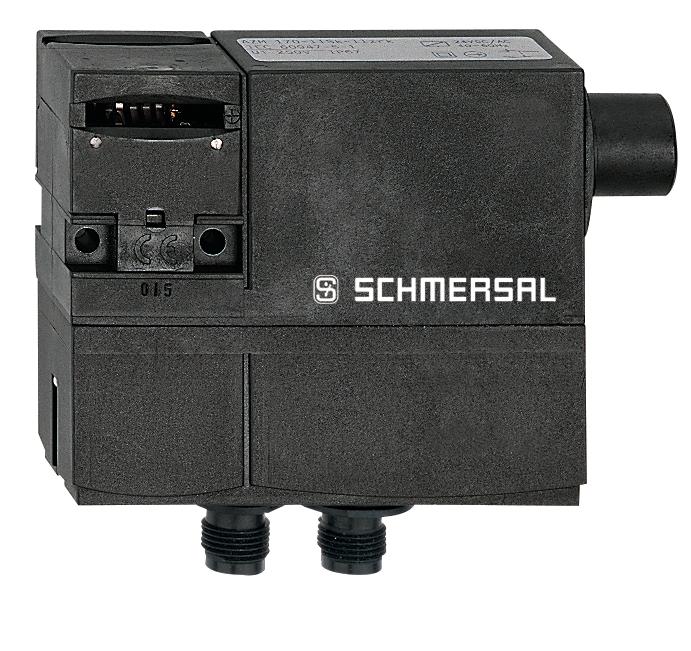

SCHMERSAL AZM170-02ZRK-ST-2197-24VAC/DC SOLENOID INTERLOCK 101141430

Product Code: 101141430

The Schmersal AZM170 series solenoid interlock is a robust machine safety component designed for secure power-to-unlock operations. It features a manual release mechanism and allows for actuation in two directions. This model comes with two safety contacts but does not include auxiliary contacts. The interlock is equipped with an M12 connector plug, supporting both 4-pole and 8-pole (A-coding) connections, and functions as a normally closed (NC) opener. With a thermal test current of 4 A, it operates efficiently at a rated control voltage of 24 VAC/DC. It meets the utilisation categories AC-15 at 230 VAC and DC-13 at 24 VDC, both rated for 4 A. Engineered for reliability in safeguarding machinery, the AZM170 is an essential component for any safety-conscious engineering project.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Temperature (°C) 60
Minimum Temperature (°C) -25
Series AZM170
