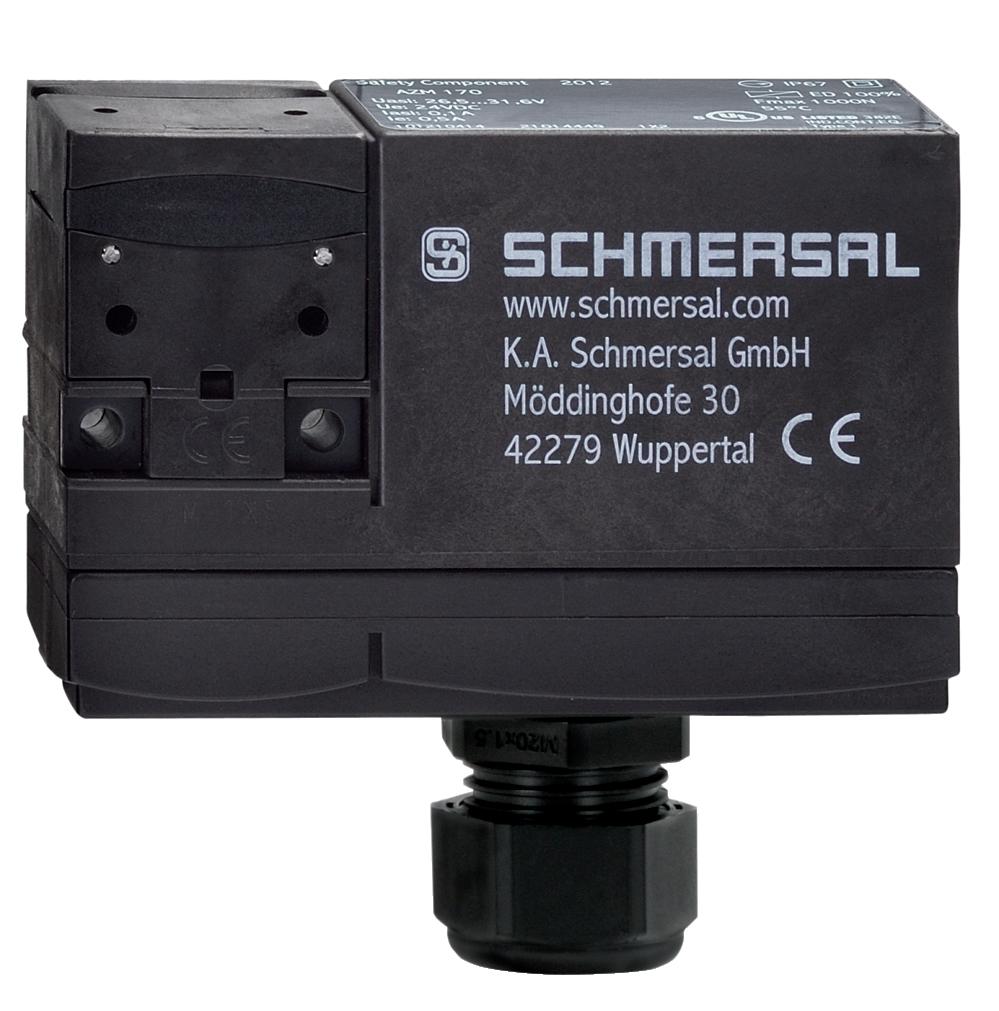

SCHMERSAL AZM170-11ZK-24VAC/DC SOLENOID INTERLOCK 101141639

Product Code: 101141639

The Schmersal AZM170 series solenoid interlock is a robust machine safety solution designed to ensure secure power locking and manual release functionality. This device features two actuating directions, along with one auxiliary contact and one safety contact for comprehensive control. It employs an IDC method for terminal connection, ensuring reliable installation with both normally open (NO) and normally closed (NC) contact configurations. The interlock is rated for a thermal test current of 6 A and can operate at a control voltage of 24 VAC/DC. It meets utilisation category AC-15 with a rating of 230 VAC at 4 A, as well as DC-13 with a rating of 24 VDC at 2.5 A, making it suitable for various industrial applications within the machine safety category.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Temperature (°C) 60
Minimum Temperature (°C) -25
Series AZM170
