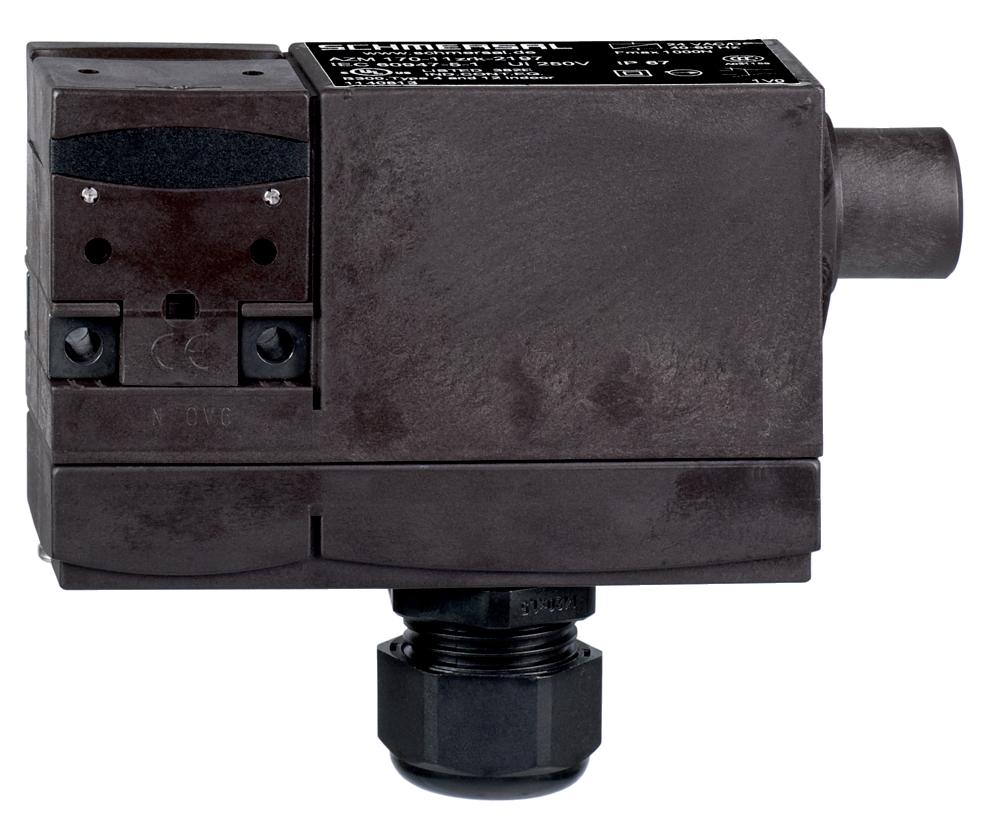

SCHMERSAL AZM170-11ZRK-2197-24VAC/DC SOLENOID INTERLOCK 101140813

Product Code: 101140813

The Schmersal AZM170 series solenoid interlock is a robust machine safety solution designed to ensure secure power locking and manual release functionality. This device features two actuating directions, along with one auxiliary contact and one safety contact for comprehensive control. It employs an IDC terminal connector for reliable termination, and includes both normally open (NO) and normally closed (NC) contacts. With a thermal test current of 6 A and a rated control voltage of 24 VAC/DC, it meets utilisation categories AC-15 at 230 VAC, 4 A, and DC-13 at 24 VDC, 4 A. Engineered for dependable performance in safeguarding applications, the AZM170 is an essential component for machine safety systems.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Temperature (°C) 60
Minimum Temperature (°C) -25
Series AZM170
