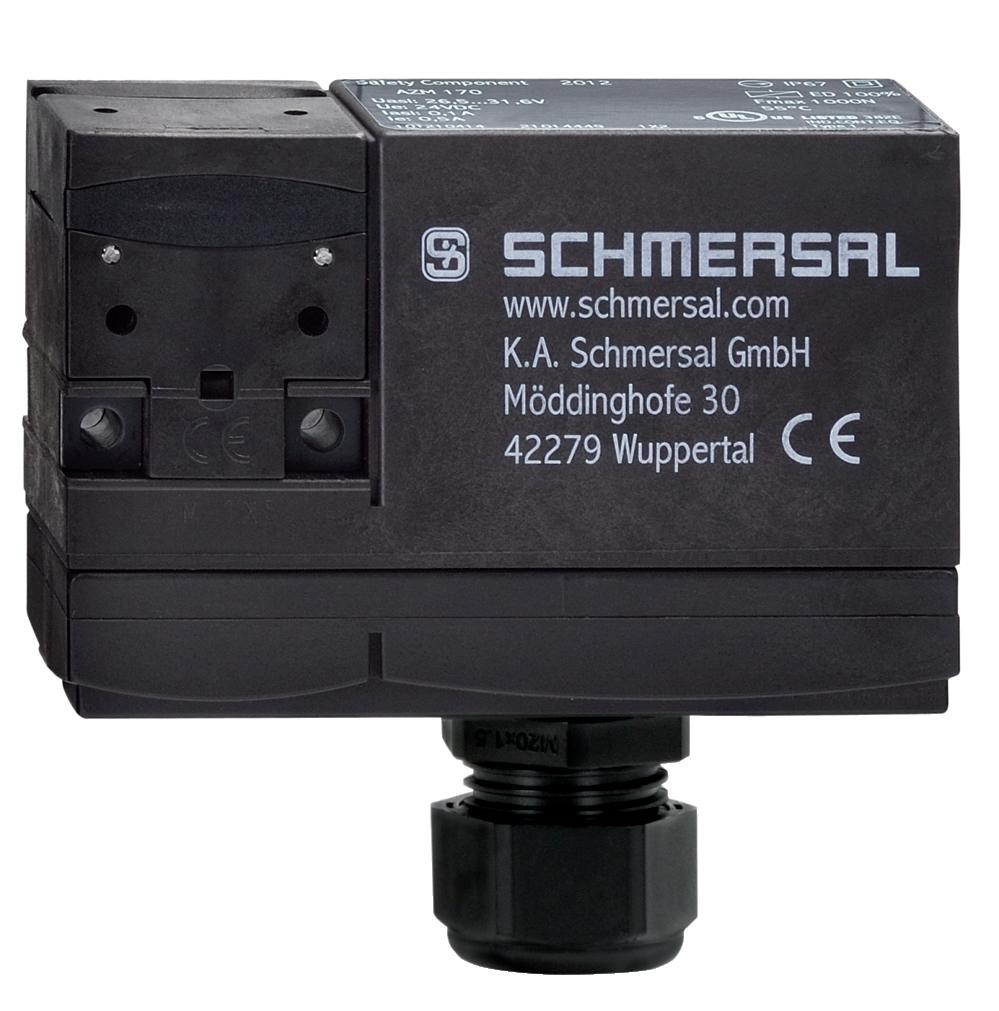

SCHMERSAL AZM170-11ZRKA-24VAC/DC SOLENOID INTERLOCK 101140796

Product Code: 101140796

The Schmersal AZM170 series solenoid interlock is a robust machine safety solution designed to ensure secure power locking with a manual release option. This device features two actuating directions and includes one auxiliary contact alongside one safety contact for reliable performance. It employs an IDC method for terminal connection, ensuring a straightforward installation process with both normally open (NO) and normally closed (NC) contacts. The interlock is rated for a thermal test current of 6 A and can operate at a control voltage of 24 VAC/DC. It meets the utilisation categories AC-15 with a rating of 230 VAC at 4 A and DC-13 at 24 VDC also at 4 A, making it versatile for various industrial applications. As part of Schmersal's commitment to machine safety, this type of solenoid interlock is an essential component for any safety-conscious engineering project.

Technical Specifications

Actuator Type Magnet
Enclosure Material Glass-fibre, reinforced thermoplastic
Gross Weight (g) 1197.08
Net Weight (g) 1197.65
Wire Cross-Section 13 AWG
Enclosure Coating Material Painted
Maximum Temperature (°C) 60
Minimum Ambient Temperature (°C) -25
Minimum Temperature (°C) -25
Brand SCHMERSAL
Series AZM170
Working Principle Electromechanical
Housing Construction Form Norm construction design
EAN 4030660000000
eCl@ss Number, Version 9.0 27-27-26-92
Coding Level According to EN ISO 14119 Low
ETIM 7.0 EC002594
ETIM 6.0 EC001258
eCl@ss Number, Version 11.0 27-27-24-92
Protection Class of Operating Resource 3
Cable Note All indications including the conductor ferrules.
Maximum Ambient Temperature (°C) 80
Maximum Cable Cross Section (mm²) 2.5
Minimum Cable Cross Section (mm²) 0.75
Mounting Type A screw length of 25 mm is sufficient for sensor mounting and for side mounting of the actuators. 30 mm long screws are recommended when the actuator is mounted upright and/or when the sealing discs are used.
Storage Temperature (°C) -25 to 85
Contact Material Silver
Maximum Actuating Speed (m/s) 1
Maximum Fuse Rating 6 A gG D-fuse
Minimum Actuating Speed (mm/min) 120
Minimum Mechanical Life 5000000 Operations
Minimum Positive Break Force (N) 20
No. of Auxiliary Contacts 1
No. of Safety Contacts 2
Overvoltage Category 3
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 500
Rated Short-circuit Current (A) 1000
Switching Element Opener (NC)
Switching Principle Slow action
Terminal Type Screw terminals M20 x 1.5
Height (mm) 100
Utilisation Category DC-13 | AC-15
Utilisation Category DC-13 0.25 A
Sensor Length (mm) 24
Sensor Height (mm) 25
Degree of Protection IP67
Pollution Degree 3
Standards EN IEC 60947-5-1 / EN ISO 14119 / BG-GS-ET-15
