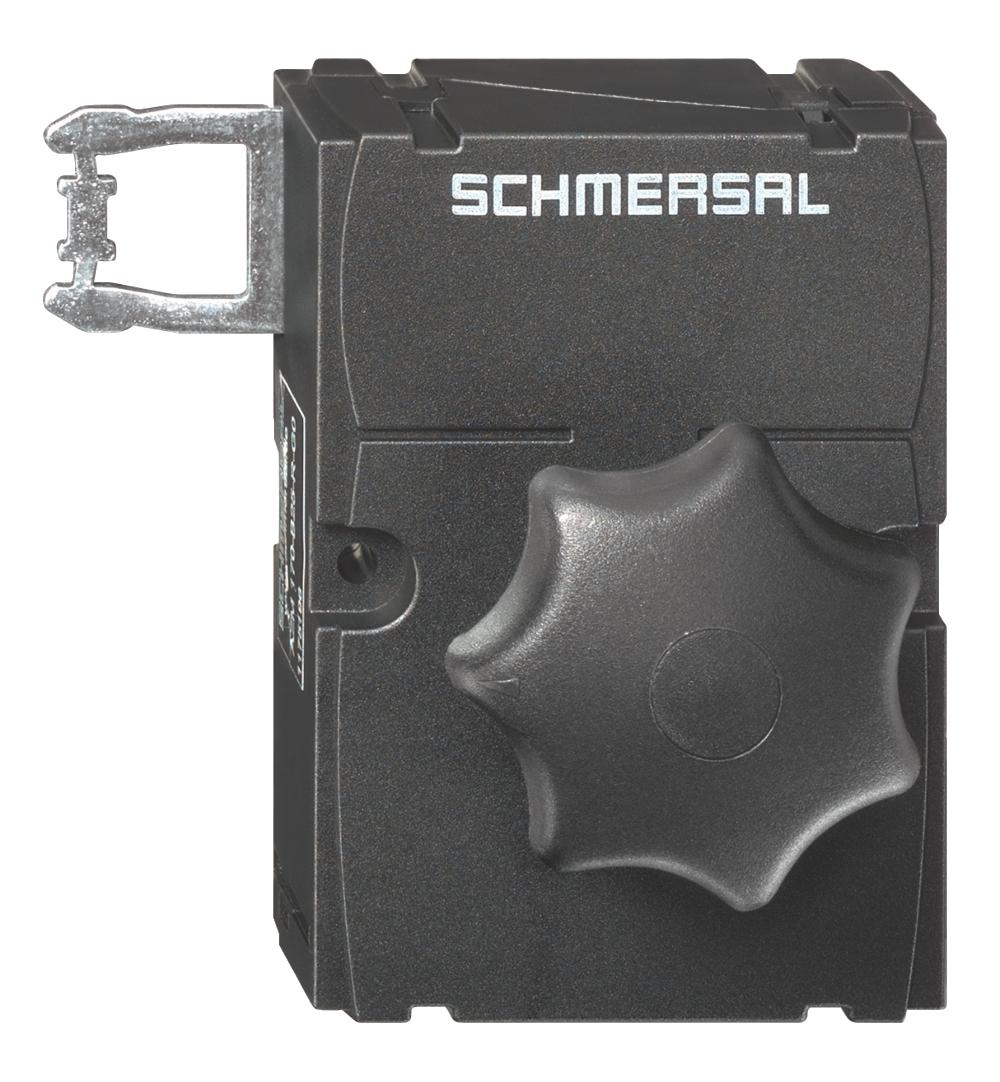

SCHMERSAL AZM 170-B25-L-G1 SOLENOID INTERLOCK 101175201

Product Code: 101175201

Enhance machine safety with the Schmersal AZM170 series solenoid interlocks, featuring a robust star grip door handle actuator designed for left-hinged doors. This product ensures secure access control and is engineered for simple mounting, offering versatility with a range of door-handle options to suit various applications. Trust in Schmersal's commitment to reliable safety solutions for industrial environments.

Technical Specifications

Brand SCHMERSAL
Actuator Type Roller lever
Cable Note All indications including the conductor ferrules.
Contact Material Silver
Degree of Protection IP65
EAN 4030660000000
eCl@ss Number, Version 11.0 27-24-90-90
eCl@ss Number, Version 9.0 27-27-26-06
Enclosure Material Aluminium
ETIM 6.0 EC001483
ETIM 7.0 EC001487
Explosion Protection Category 3D | 3G
Gross Weight (g) 300
Maximum Actuating Speed (m/s) 2
Maximum Ambient Temperature (°C) 50
Maximum Cable Cross Section (mm²) 2.5
Maximum Fuse Rating 6 A gG D-fuse
Minimum Ambient Temperature (°C) -30
Minimum Cable Cross Section (mm²) 0.25
Minimum Mechanical Life 1000000 Operations
Net Weight (g) 1700
No. of Safety Contacts 1
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 250
Rated Short-circuit Current (A) 1000
Sensor Height (mm) 117
Sensor Length (mm) 79
Series AZM170
Standards EN IEC 60947-5-1 / EN IEC 60947-1
Switching Element NO contact, NC contact
Switching Principle Snap action
Terminal Type Screw terminals M20 x 1.5
Utilisation Category DC-13 | AC-15
Utilisation Category DC-13 1.5 A
Working Principle RFID
