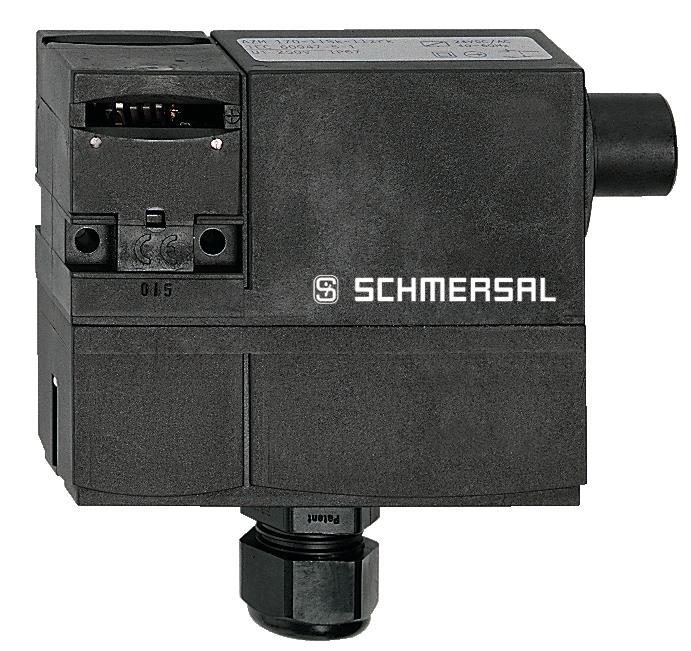

SCHMERSAL AZM170SK-02ZRK-2197-24VAC/DC SOLENOID INTERLOCK 101144261

Product Code: 101144261

The Schmersal AZM170 series solenoid interlock is a robust machine safety solution designed to ensure operational security. This power-to-unlock device features a manual release and allows for actuation in two directions. It comes equipped with two safety contacts but does not include auxiliary contacts. The interlock utilizes screw terminals for secure connections and has an opener with normally closed (NC) configuration. With a thermal test current of 6 A, it operates on a rated control voltage of 24 VAC/DC. It meets utilization categories AC-15 at 230 VAC, 4 A, and DC-13 at 24 VDC, 4 A, making it suitable for various industrial applications where reliable machine access control is required.

Technical Specifications

Brand SCHMERSAL
Actuator Type Pull strap
Cable Note All indications including the conductor ferrules.
Coding Level According to EN ISO 14119 High
Contact Material Silver
Degree of Protection IP67
EAN 4030660000000
eCl@ss Number, Version 11.0 27-37-12-11
eCl@ss Number, Version 9.0 27-37-12-10
Enclosure Coating Material Painted
Enclosure Material Glass-fibre, reinforced thermoplastic
ETIM 6.0 EC000221
ETIM 7.0 EC000222
Gross Weight (g) 6100
Height (mm) 69
Housing Construction Form Norm construction design
Maximum Actuating Speed (m/s) 2
Maximum Ambient Temperature (°C) 50
Maximum Cable Cross Section (mm²) 2.5
Maximum Fuse Rating 6 A gG D-fuse quick blow
Maximum Temperature (°C) 60
Minimum Actuating Speed (mm/min) 1
Minimum Ambient Temperature (°C) -25
Minimum Cable Cross Section (mm²) 0.75
Minimum Mechanical Life 1000000 Operations
Minimum Positive Break Force (N) 20
Minimum Temperature (°C) -25
Net Weight (g) 277
No. of Auxiliary Contacts 1
No. of Safety Contacts 2
Overvoltage Category 3
Pollution Degree 3
Rated Impulse Withstand Voltage (kV) 2.5
Rated Insulation Voltage (V) 500
Rated Short-circuit Current (A) 1000
Resistance to Shock (g/ms) 30 / 11
Sensor Height (mm) 101.5
Sensor Length (mm) 57
Series AZM170
Standards EN IEC 60947-5-1 / BG-GS-ET-15
Storage Temperature (°C) 25 to 85
Switching Element Opener (NC)
Switching Principle Snap action
Terminal Type Cable
Thermal Test Current (A) 0.25
Utilisation Category DC-13 | AC-15
Utilisation Category DC-13 0.05 A
Wire Cross-Section 13 AWG
Working Principle Mechanical
