Housing Material	Aluminium
No. of Doors	1 (Guard Door)
Enclosure Coating Material	Painted
Minimum Ambient Temperature (°C)	-25
Brand	SCHMERSAL
Maximum Ambient Temperature (°C)	50
Maximum Cable Cross Section (mm²)	2 x 2.5
Minimum Cable Cross Section (mm²)	2 x 0.75
Contact Material	Silver
Holding Force (N)	3500
Maximum Actuating Speed (m/s)	0.2
Maximum Fuse Rating	6 A gG D-fuse
Maximum Latching Force (N)	400
Minimum Latching Force (N)	150
Minimum Mechanical Life	1000000 Operations
Minimum Positive Break Force (N)	15
No. of Actuating Directions	1
No. of Auxiliary Contacts	2
No. of Safety Contacts	2
Positive Break Travel (mm)	5
Power Consumption (W)	10
Rated Control Voltage AC/DC (V)	24
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	250
Rated Operational Current AC-15 (A)	4
Rated Operational Current DC-13 (A)	1
Rated Operational Voltage AC-15 (V)	230V AC
Rated Operational Voltage DC-13 (V)	24V DC
Switching Element	NO Contact, NC Contact
Switching Principle	Slow Action
Termination	Screw Terminals M20 x 1.5
Thermal Test Current (A)	6
Utilisation Category	DC-13
Sensor Height (mm)	100
Degree of Protection	IP54
Standards and Approvals	EN IEC 60947-5-1, EN ISO 13849-1

Safety Interlocks

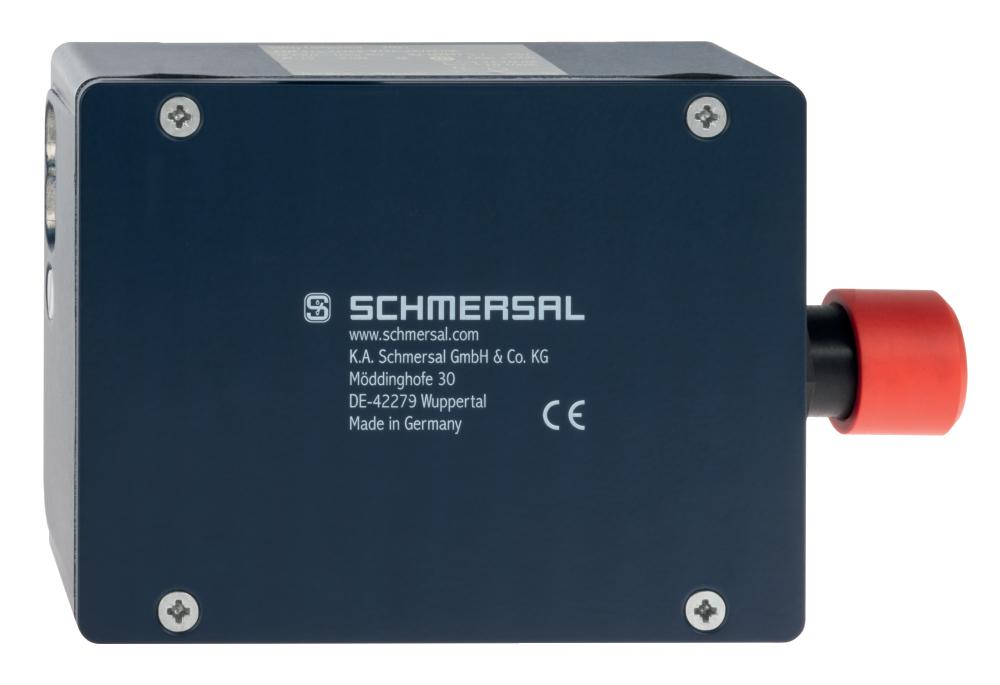

SCHMERSAL AZM 415-22XPK-9726 24VAC/DCSOLENOID INTERLOCK 101136126
