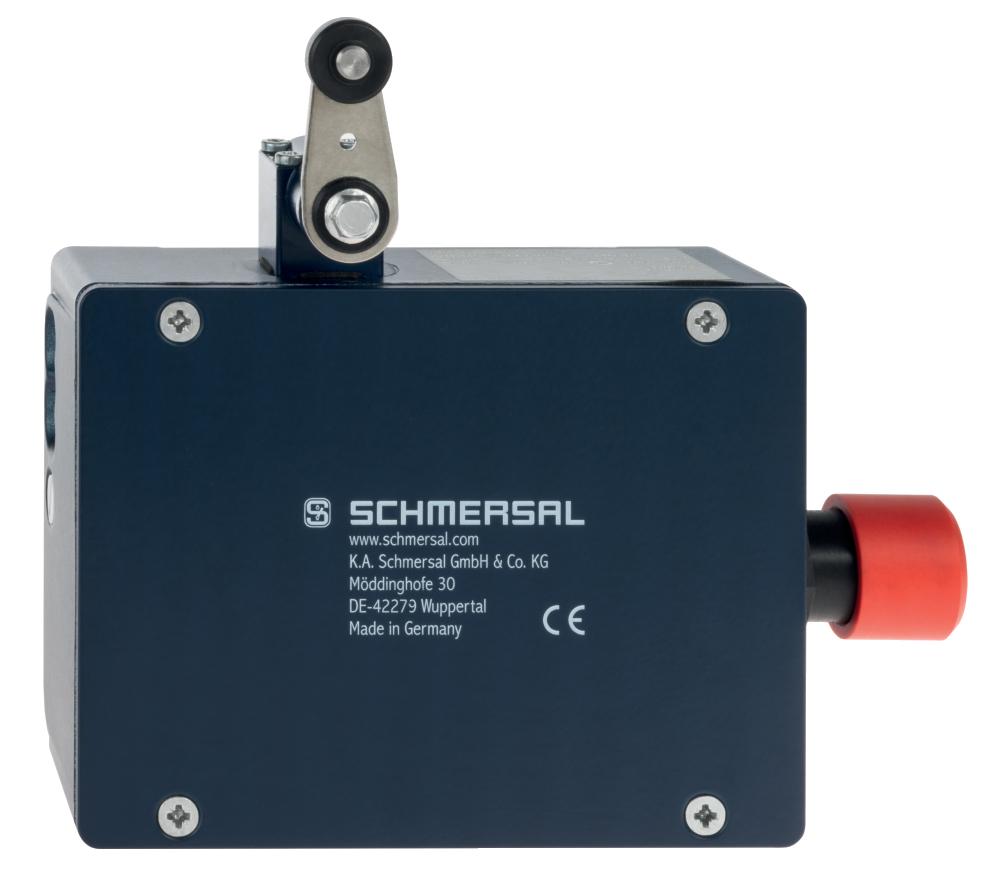

SCHMERSAL AZM 415-22XPK14H-972524VAC/DC 101136087

Product Code: 101136087

Technical Specifications

No. of Actuating Directions 1
Brand SCHMERSAL
Contact Material Silver
Degree of Protection IP54
Enclosure Coating Material Painted
Holding Force (N) 3500
Housing Material Aluminium
Maximum Actuating Speed (m/s) 0.2
Maximum Ambient Temperature (°C) 50
Maximum Cable Cross Section (mm²) 2 x 2.5
Maximum Fuse Rating 6 A gG D-fuse
Maximum Latching Force (N) 400
Minimum Ambient Temperature (°C) -25
Minimum Cable Cross Section (mm²) 2 x 0.75
Minimum Latching Force (N) 150
Minimum Mechanical Life 1000000 Operations
Minimum Positive Break Force (N) 15
No. of Auxiliary Contacts 2
No. of Doors 1 (Guard Door)
No. of Safety Contacts 2
Positive Break Travel (mm) 5
Power Consumption (W) 10
Rated Control Voltage AC/DC (V) 24
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 250
Rated Operational Current AC-15 (A) 4
Rated Operational Current DC-13 (A) 1
Rated Operational Voltage AC-15 (V) 230V AC
Rated Operational Voltage DC-13 (V) 24V DC
Sensor Height (mm) 120
Sensor Length (mm) 50
Standards and Approvals EN IEC 60947-5-1, EN ISO 13849-1
Switching Element NO Contact, NC Contact
Switching Principle Slow Action
Termination Screw Terminals M20 x 1.5
Thermal Test Current (A) 6
Utilisation Category DC-13
