Brand	SCHMERSAL
Gross Weight (g)	610
Maximum Electrical Switching Frequency	0.5 Hz
Rated Short-circuit Current (A)	100
Termination	Connector M12, 8-pole, A-coded
Utilisation Category DC-13	24 V / 0.05 A
Ambient Temperature Range (°C)	+0 ... +60
Degree of Protection	IP66 IP67 IP69
Dimensions (mm)	55H X 87.5W X 146L
Housing Material	Glass-fibre, reinforced thermoplastic
Rated Insulation Voltage (V)	32
Standards and Approvals	EN ISO 13849-1 EN ISO 14119 EN IEC 60947-5-3 EN IEC 61508
Tightening Torque (Nm)	6

Safety Interlocks

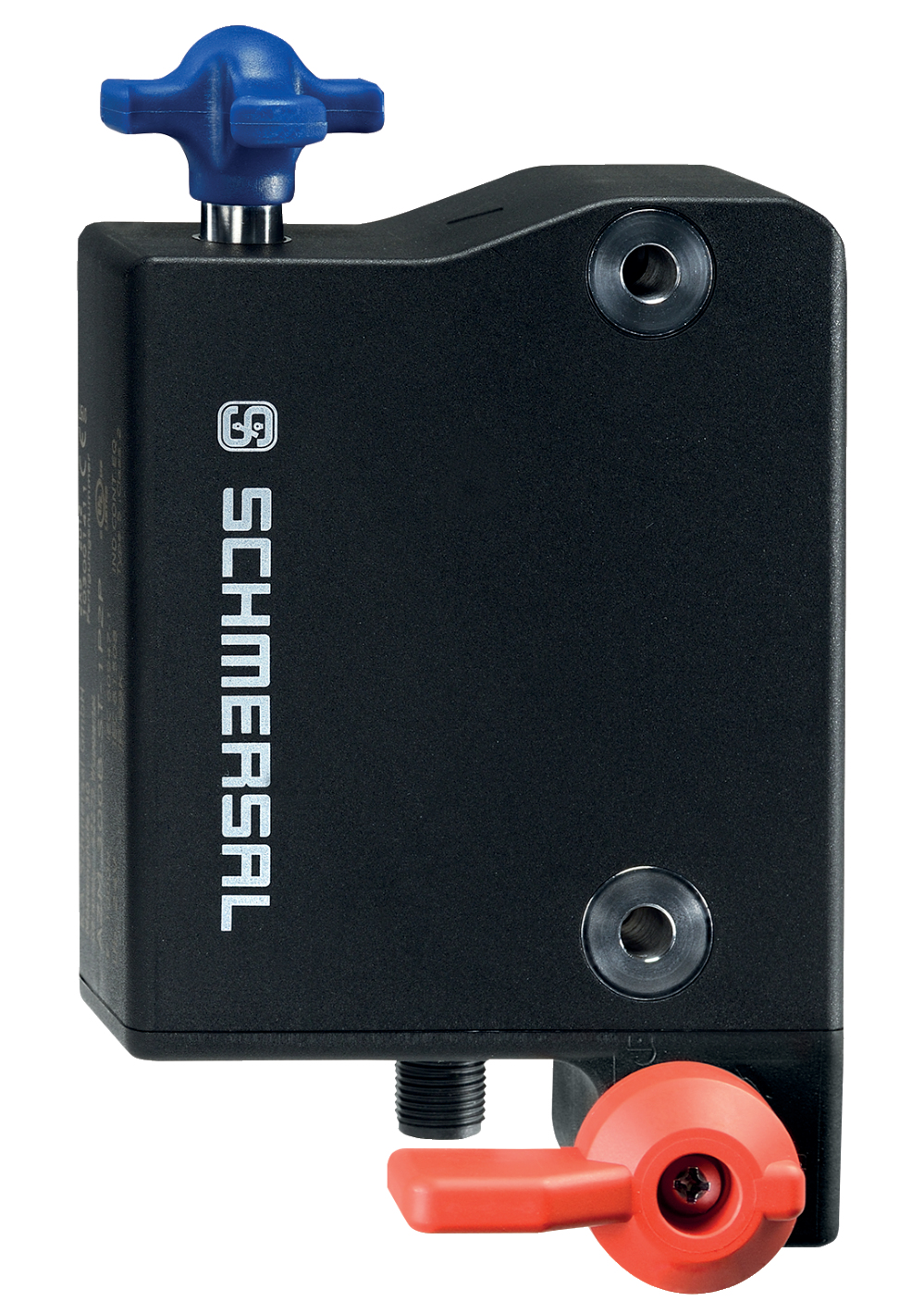

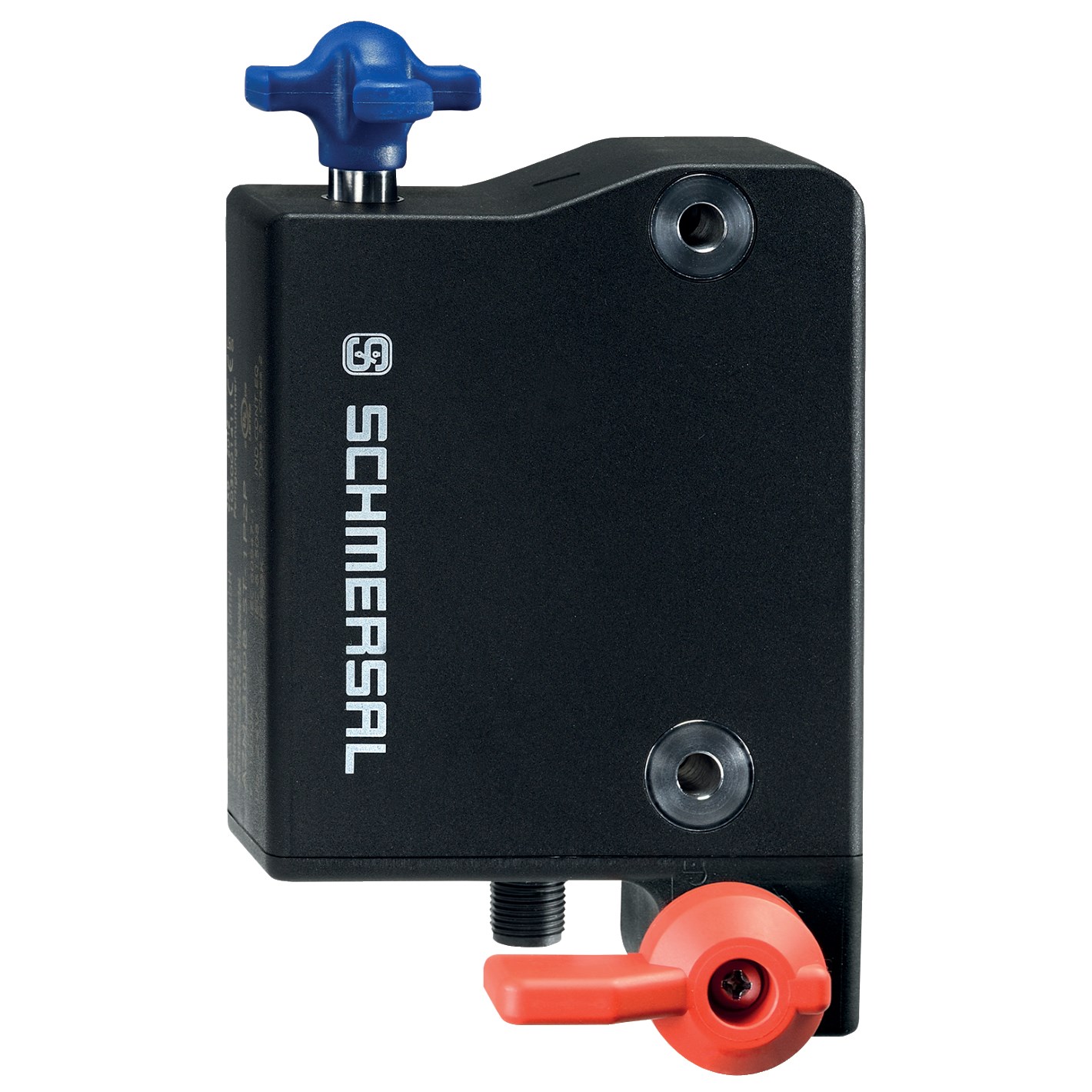

SCHMERSAL SOLENOID INTERLOCK AZM300B-ST-1P2P-T 103006862
