Brand	SCHMERSAL
Gross Weight (g)	846
Maximum Electrical Switching Frequency	0.3 Hz
Rated Short-circuit Current (A)	100
Termination	Connector M12, 8-pole, A-coded
Utilisation Category DC-13	24 V / 0.25 A
Ambient Temperature Range (°C)	-25 ... +55
Degree of Protection	IP66 IP67
Dimensions (mm)	156.7H X 77.8W X 65.3L
Housing Material	Light alloy die-casting
Rated Insulation Voltage (V)	32
Standards and Approvals	EN ISO 13849-1 EN ISO 14119 EN IEC 60947-5-3 EN IEC 61508

Safety Interlocks

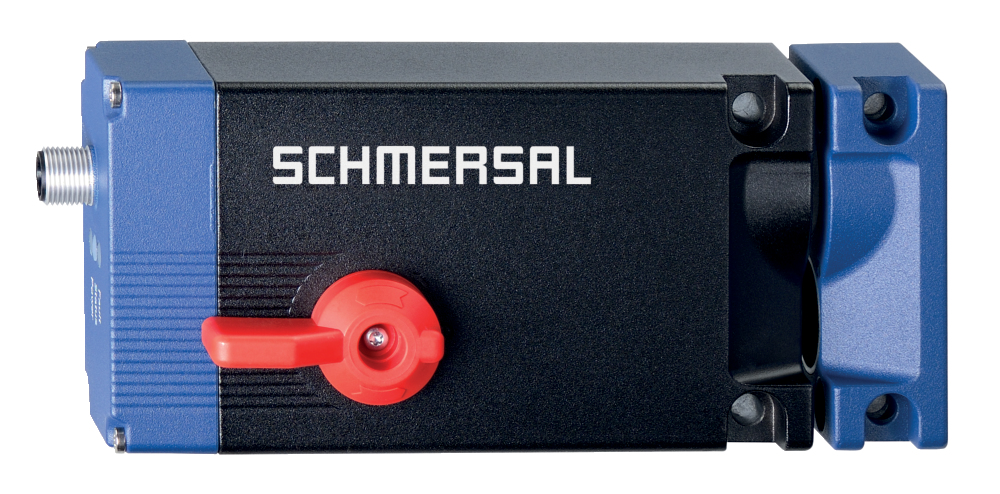

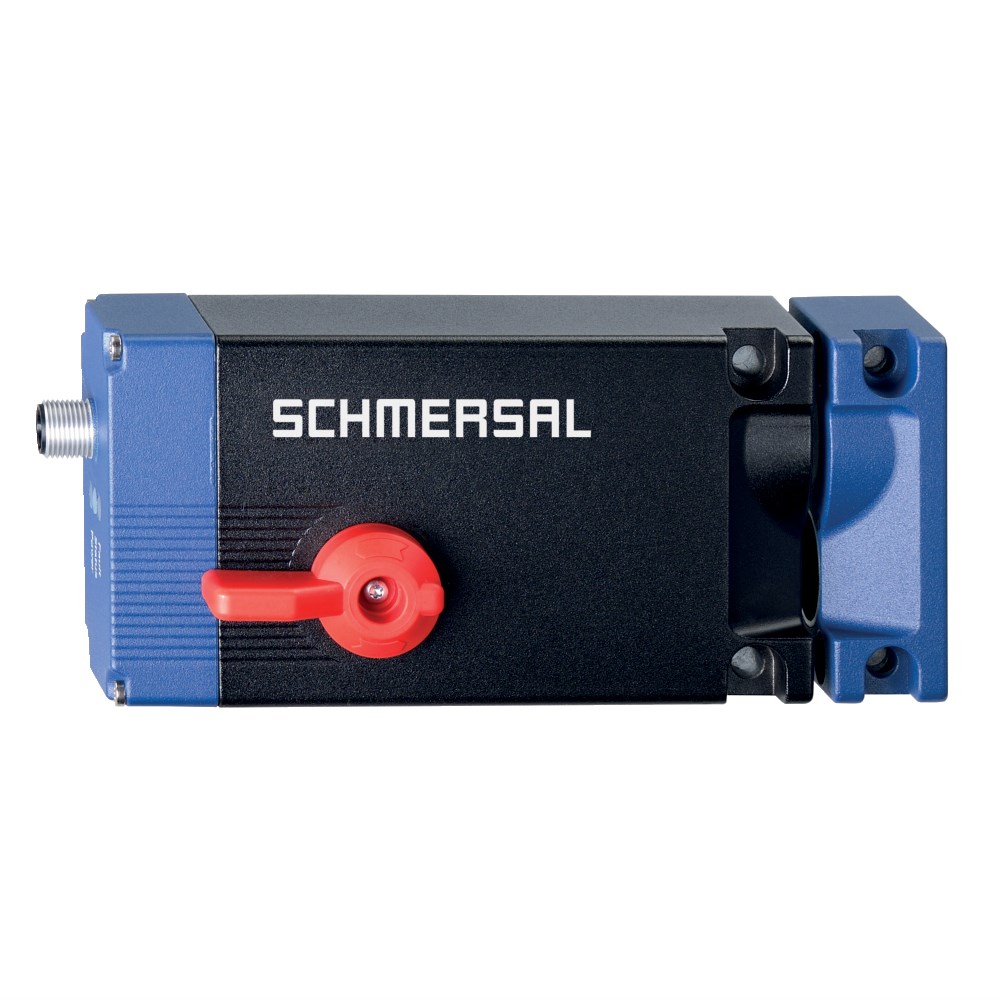

SCHMERSAL SOLENOID INTERLOCK AZM400Z-ST-I2-1P2P-T 101213821
