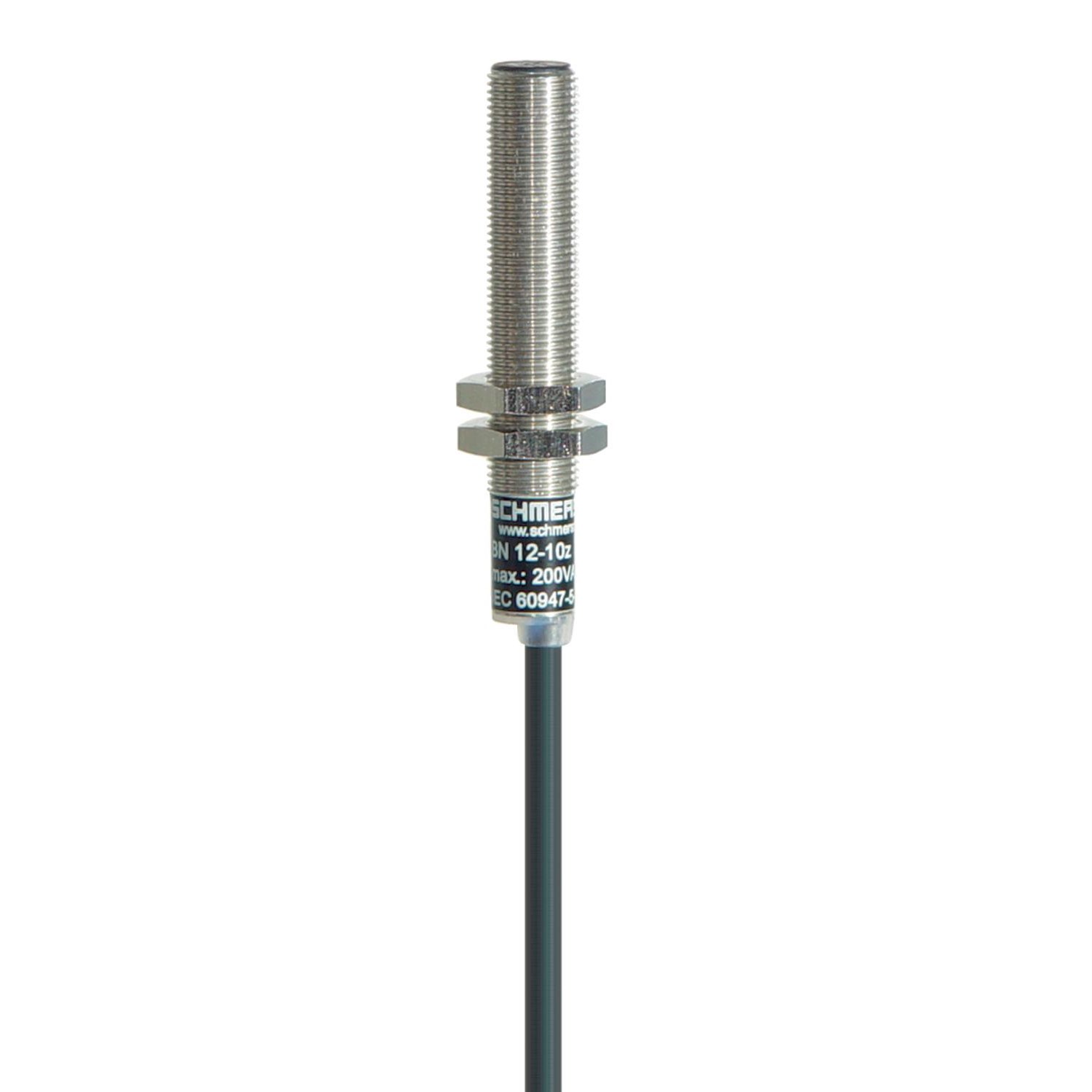

Discover the Schmersal BN 12 Series Magnetic Reed Switch, a robust position sensor designed for precision and durability. Encased in a sturdy metal enclosure with an integrated bias magnet, this cylindrical switch features a threaded design for secure installation and comes equipped with a terminal connector cable for easy connectivity. With a compact size of 10.7 mm, it offers front actuation and utilizes a normally open (NO) contact switching element.
The switch operates within an actuation distance range of 5 mm to 55 mm and is capable of handling up to 200 VAC switching voltage, 1 A switching current, and has a maximum switching capacity of 30 W at a frequency of up to 300 Hz. Designed for central mounting, the reed contacts ensure reliable operation over time.
Please note that actuators are not included and must be purchased separately. The switch boasts an extended operational life span even in challenging conditions, functioning optimally between temperatures of -25°C to +70°C. It also meets IP67 standards according to IEC/EN 60529, ensuring protection against dust and water ingress.
Engineered for long-lasting performance in demanding environments, the Schmersal BN 12 Magnetic Reed Switch is an ideal choice for engineers seeking reliable position sensing solutions.
