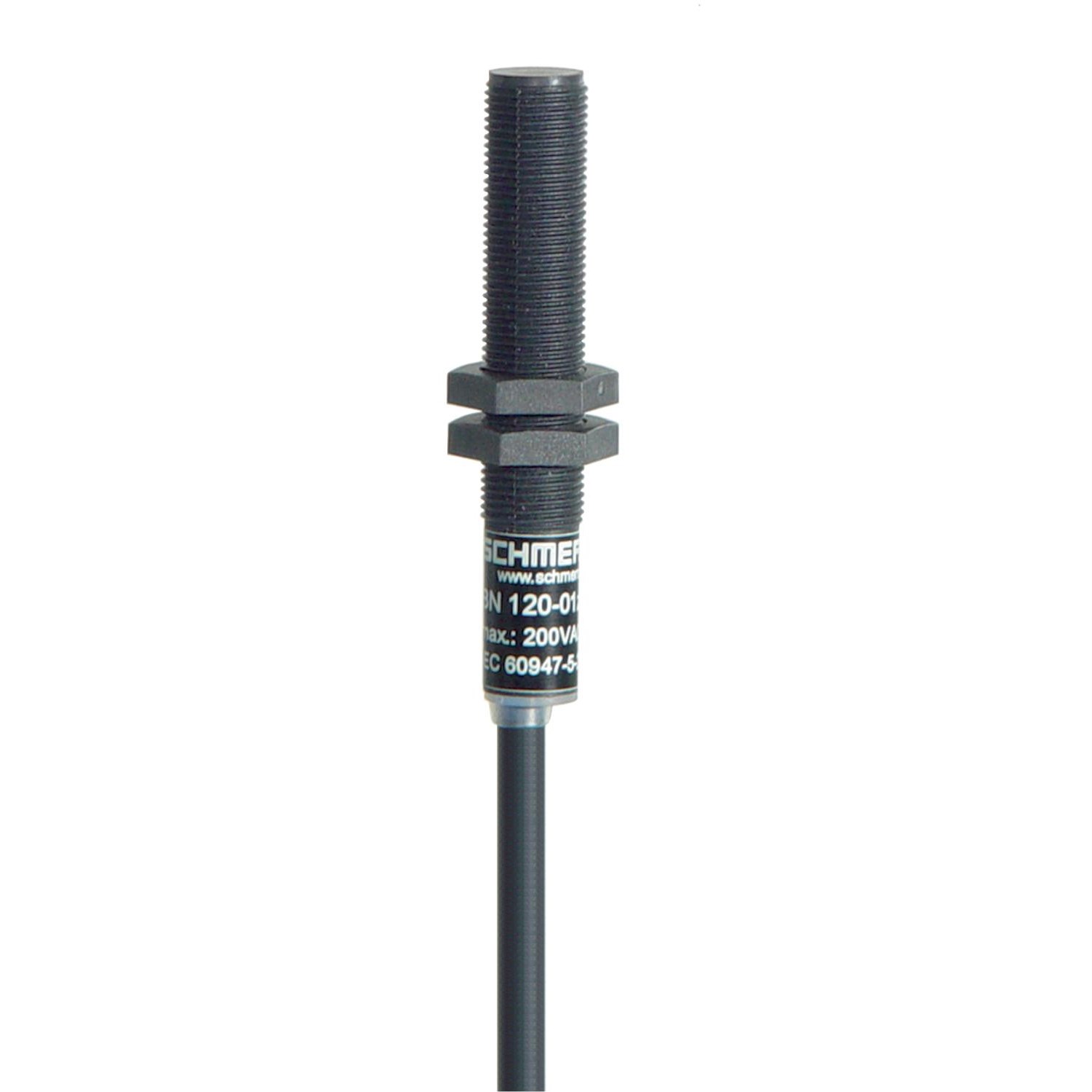

Explore the Schmersal BN 120 Series Magnetic Reed Switch, a robust position sensor designed for precision and durability. Encased in a thermoplastic housing with a bias magnet, this switch features a cylindrical threaded design complemented by a terminal connector cable for easy installation. With an actuation range of 5 mm to 55 mm from the front, it ensures reliable operation as an opener (normally closed) contact element.
Engineered for high-performance applications, the switch supports a maximum switching voltage of 200 VAC and can handle currents up to 1 A with a maximum switching capacity of 30 W at frequencies up to 300 Hz. Its reed contacts are centrally mounted for stability, and while actuators are available, they must be purchased separately.
Built to last with an operational lifespan that meets demanding usage requirements, the switch operates effectively within a temperature range of -25°C to 70°C. It also boasts an IP67 rating according to IEC/EN 60529 standards, ensuring protection against dust and water ingress in harsh environments.
Ideal for engineers seeking reliable sensing solutions, the Schmersal BN 120 Magnetic Reed Switch is synonymous with longevity and precision in industrial settings.
