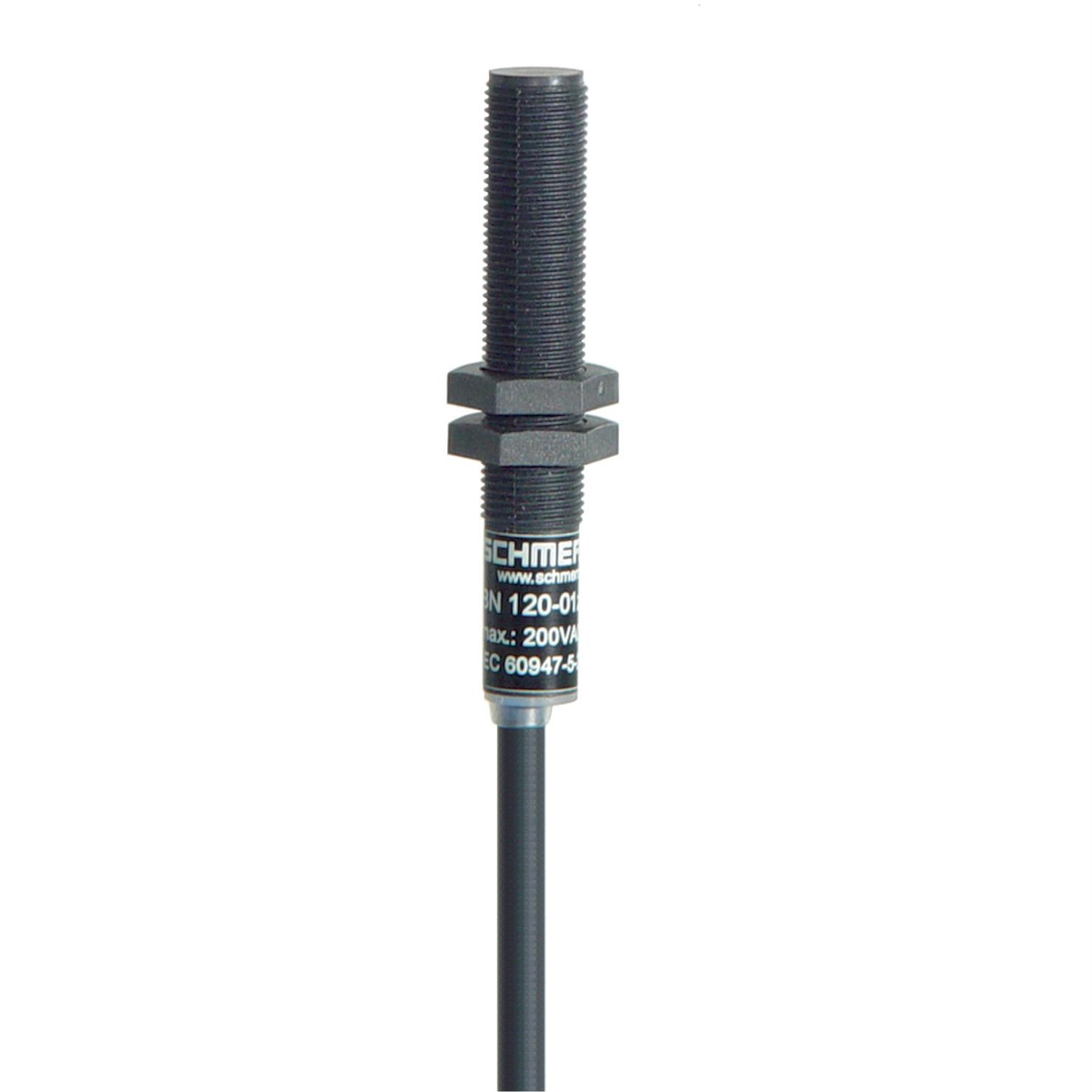

Explore the Schmersal BN 120 series magnetic reed switch, designed for precision and durability. This position sensor features a robust thermoplastic enclosure with an integrated bias magnet and offers reliable operation with its normally open (NO) contact switching element. Engineered for side actuation, it comes with a terminal connector cable and has a compact size of 10.7 mm in diameter with a threaded cylinder design for easy installation.
The switch operates within an actuation distance range of 3 mm to 45 mm and is capable of handling a maximum switching voltage of 200 VAC, current up to 1 A, and switching capacity up to 30 W at frequencies up to 300 Hz. Its reed contacts ensure consistent performance, while the central mounting feature allows for straightforward integration into various applications.
Please note that actuators are sold separately, allowing you to customize based on your specific needs. The switch's long life span is complemented by its wide operating temperature range from -25°C to 70°C, making it suitable for diverse environments. Additionally, it boasts an IP67 rating according to IEC/EN 60529 standards, ensuring protection against dust and water ingress.
Choose the Schmersal BN 120 magnetic reed switch for a reliable sensing solution in industrial settings where precision and longevity are paramount.
