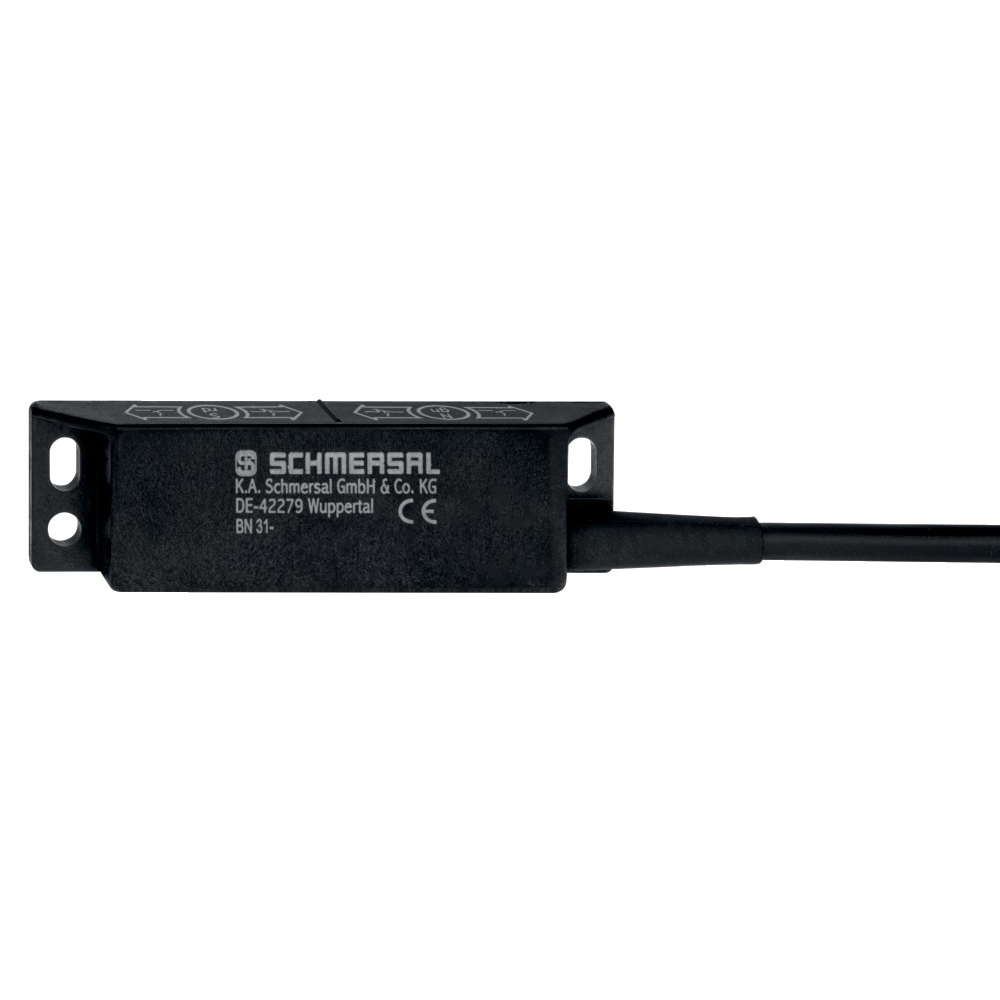

Schmersal 101175622 Magnetic Reed Switch 3A BP 10 M8 Connector Terminal

Product Code: 101175622

  • 3 A rated current with magnetic drive
  • Durable glass fibre reinforced thermoplastic housing
  • IP67 protection for harsh environments
  • Wide temp range: -25 to 75°C
  • Impressive mechanical life of 1 billion ops
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Ambient Temperature Range (°C) -25 to 75
Sensor Length (mm) 13
Sensor Width (mm) 88
Sensor Height (mm) 25
Minimum Mechanical Life 1,000,000,000 Operations
Gross Weight (g) 25
Resistance to Shock (g/ms) 30g/ 11ms
Resistance to Vibrations 10 - 55Hz, Amplitude 1mm
Maximum Switching Capacity (W) 80
Maximum Switching Capacity (A) 3
Product Type Magnetic Reed Switch
Brand SCHMERSAL
Accuracy 0.3 mm
Actuating Element Magnet
Actuating Speed 18 m/s
Control Element Reed Contacts
Degree of Protection IP67
Housing Material Glass Fibre Reinforced Thermoplastic
Mechanical Life 1000000000 Operations
Operational Temperature -25 to 75 deg C
Rated Current 3 A
Resistance 10-55 Hz
Switching Capacity 80 W
Switching Type Magnetic Drive
Weight 25 g
