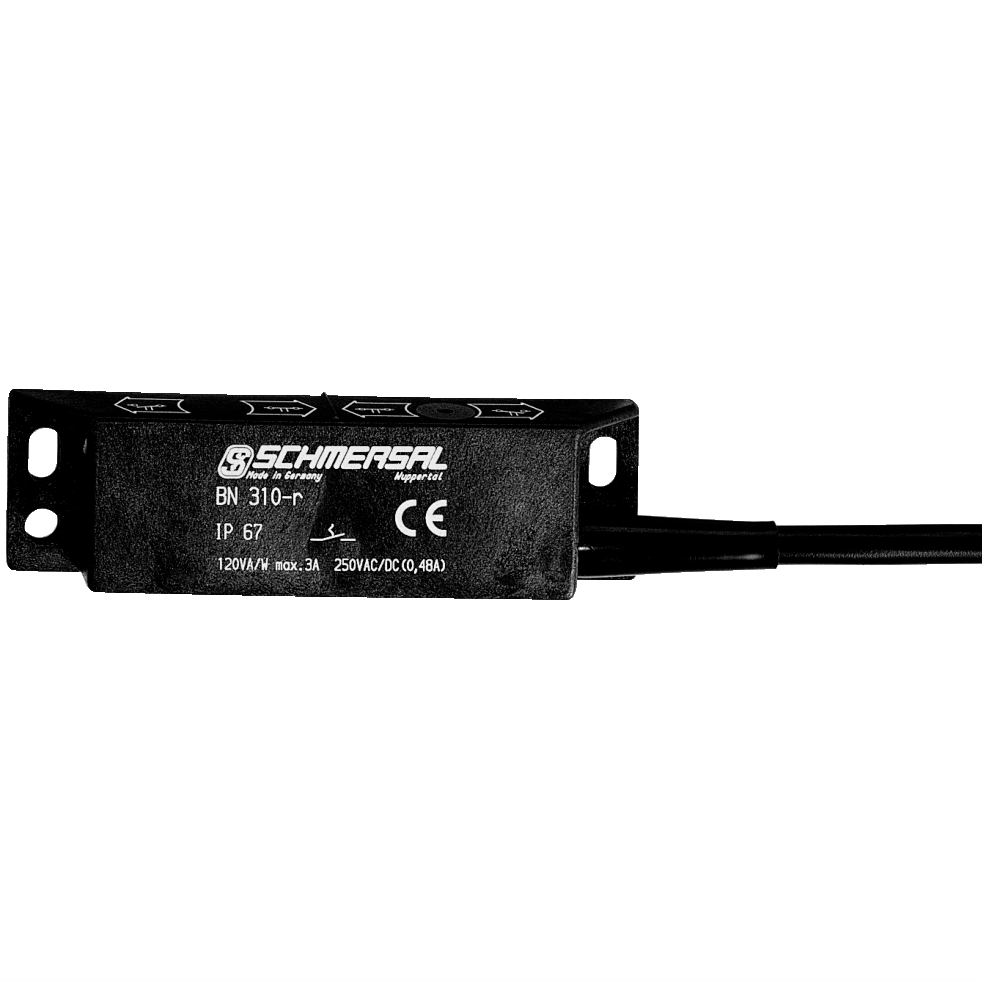

Schmersal 101184486 Magnetic Reed Switch 1m L Cable 3A BP 10 Cable Terminal

Product Code: 101184486

  • Rated for 3 A current
  • IP67 protection rating
  • Operates in -25 to 75°C range
  • Magnetic drive switching type
  • Durable with 1 billion operations
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Suitable For Elevators
Weight (kg) 0.065
Maximum Switching Capacity (W) 30
Maximum Switching Current (A) 3
Wire Cross Section (mm²) 0.75
No. of Snap in Contacts 2
Dimensions (mm) 88W x 25H x13D
Product Type Magnetic Reed Switch
Brand SCHMERSAL
Accuracy 0.3 mm
Actuating Element Magnet
Actuating Speed 18 m/s
Cable Length 1 m
Connection Type Preassembled Cable - 1m
Control Element Reed Contacts
Degree of Protection IP67
Housing Material Glass Fibre Reinforced Thermoplastic
Mechanical Life 1000000000 Operations
Operational Temperature -25 to 75 deg C
Rated Current 3 A
Resistance 10-55 Hz
Switching Capacity 30 W
Switching Type Magnetic Drive
Weight 65 g
