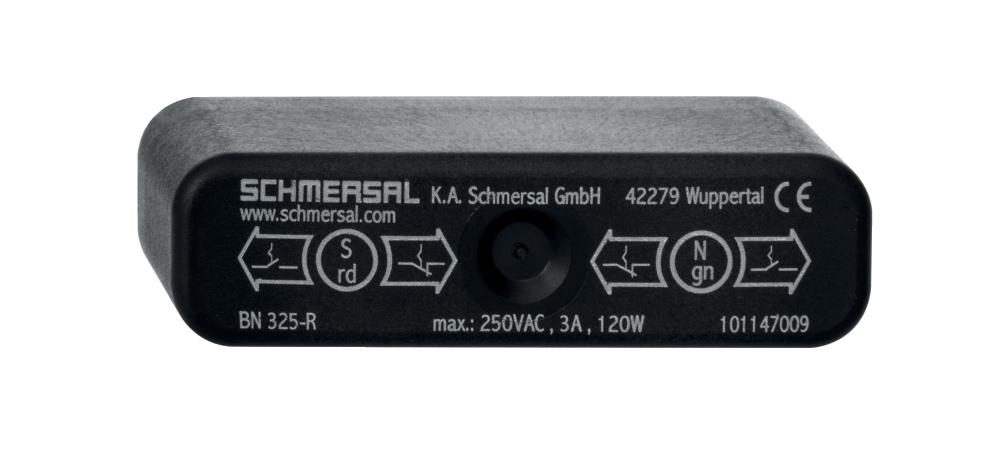

SCHMERSAL BN325-R MAGNETIC REED SWITCH 101147009

Product Code: 101147009

Explore the Schmersal BN325 Series Magnetic Reed Switch, designed for precision and durability. This switch features a robust thermoplastic enclosure and is equipped with a spade connector for easy installation. The rectangular design includes a 4.8 mm flat plug-in terminal connector and an accompanying shielding plate to ensure stable operation. With front actuation, this bistable contact switch offers an activation distance ranging from 5 mm to 55 mm. Engineered for high-performance applications, the BN325 can handle switching voltages up to 250 VAC and currents up to 3 A, with a maximum switching capacity of 120 W at a frequency of 300 Hz. Its reed contacts are crafted for reliability in various conditions, operating within a temperature range of -25°C to 70°C. Please note that actuators are required but must be purchased separately. The device maintains an IP40 rating, signifying protection against solid objects larger than 1mm but not against water ingress. Ideal for engineers seeking efficient position sensing solutions in industrial settings, the Schmersal BN325 Series stands out as a dependable choice.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP40
Maximum Nominal Output Voltage AC (V) 250
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Mounting Type Threaded
Nominal Output Current (A) 3
Nominal Power (W) 120
Series BN325
