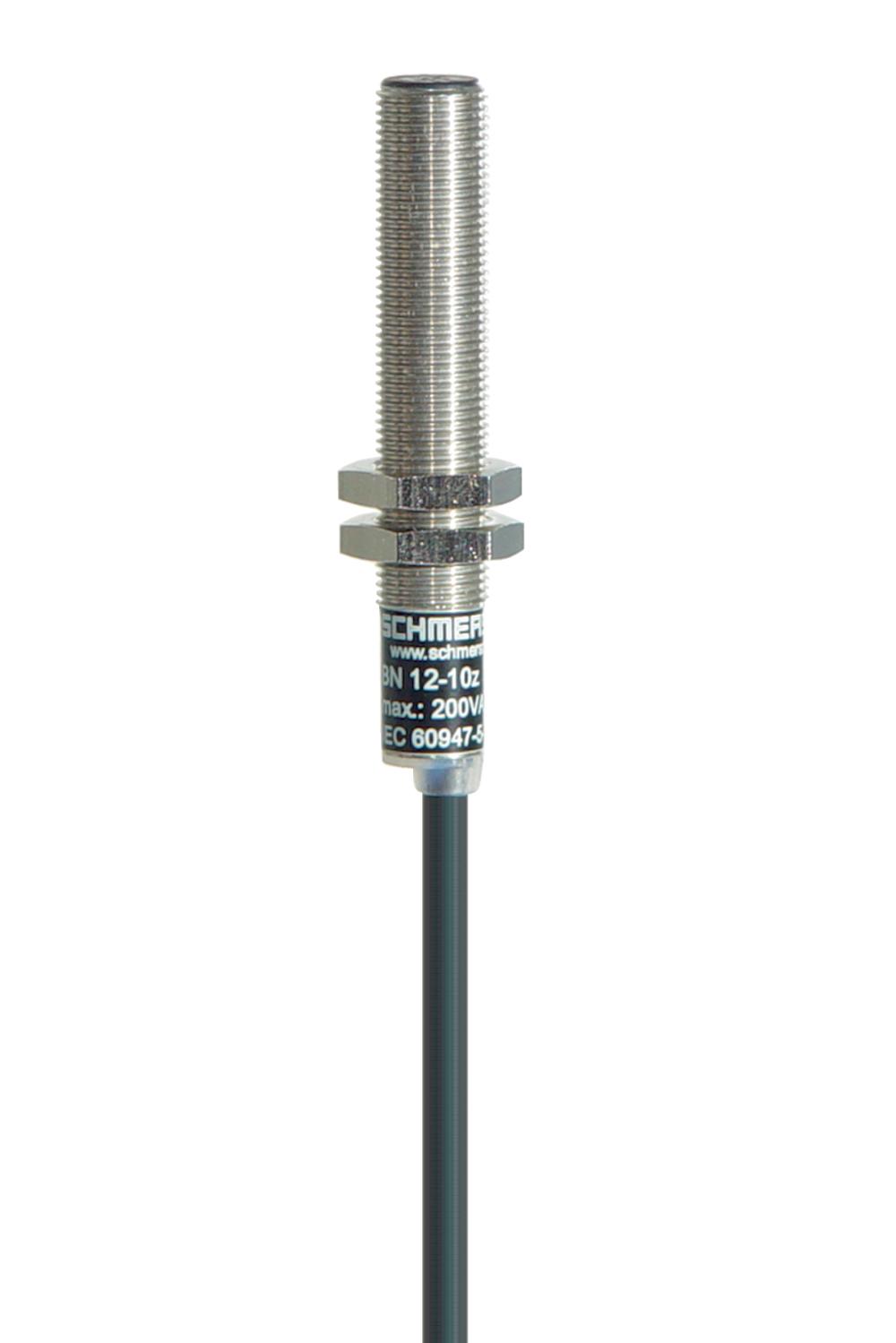

SCHMERSAL BN 12-10Z MAGNETIC REED SWITCH 101101263

Product Code: 101101263

Explore the Schmersal BN 12 Series Magnetic Reed Switch, a robust position sensor designed for precision and durability. Encased in a sturdy metal enclosure with a bias magnet, this cylindrical switch features a thread design and comes equipped with a terminal connector cable for easy installation. With an actuation from the side, it offers a normally open (NO) contact switching element and operates within an actuation distance range of 5 mm to 50 mm. Engineered for high-performance applications, the switch supports a maximum switching voltage of 200 VAC, a maximum current of 1 A, and can handle up to 30 W of switching capacity at frequencies up to 300 Hz. The reed contacts are centrally mounted for stability, ensuring reliable operation over time. This long-life sensor is designed to withstand harsh conditions with an operating temperature range from -25°C to 70°C and boasts an IP67 rating according to IEC/EN 60529 standards for dust and water resistance. Please note that actuators are sold separately. Ideal for engineers seeking reliable sensing solutions, the Schmersal BN 12 Series Magnetic Reed Switch is synonymous with quality and longevity in demanding industrial environments.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Nominal Output Voltage AC (V) 200
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Mounting Type Threaded
Nominal Output Current (A) 1
Nominal Power (W) 30
Series BN 12
