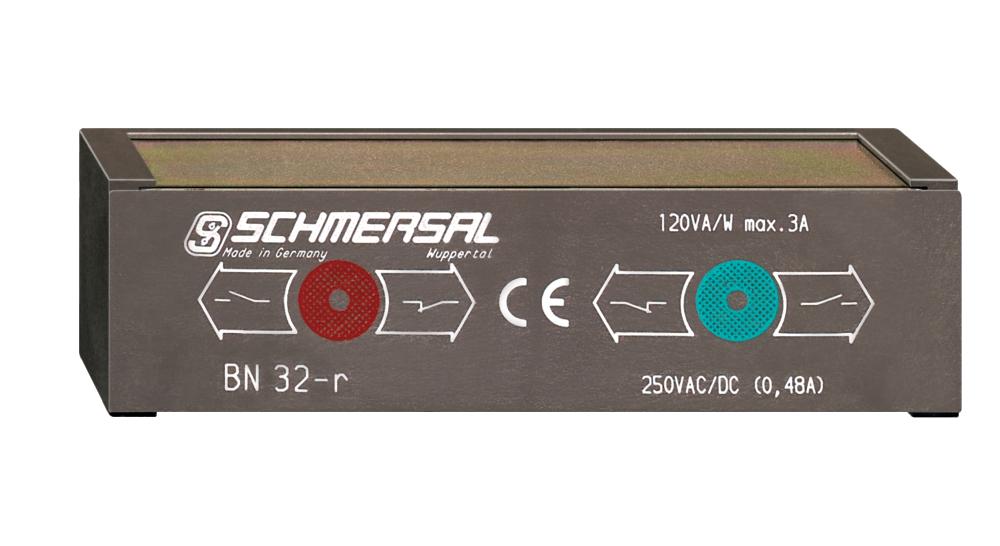

SCHMERSAL BN 32-01MAGNETIC REED SWITCH 101057229

Product Code: 101057229

Technical Specifications

Actuating Element Magnet
Maximum Actuating Speed (m/s) 18
Maximum Bounce Duration (ms) 0.6
Maximum Switching Capacity (VA) 120
Maximum Switching Capacity (W) 120
Minimum Ambient Temperature (°C) -25
Minimum Bounce Duration (ms) 0.3
Recommended Actuator BP 10
Repeat Accuracy (mm) 0.25
Sensor Height (mm) 26
Sensor Length (mm) 24
Sensor Width (mm) 85
Switching Element Opener (NC)
Switching Frequency 1080000/h
Termination Flat Plug-in Connector 4.8mm
Brand SCHMERSAL
Degree of Protection IP67
Housing Material Glass-fibre, Reinforced Thermoplastic
Maximum Ambient Temperature (°C) 90
Maximum Switching Current (A) 3
Maximum Switching Voltage AC (V) 250
Minimum Mechanical Life 1000000000 Operations
No. of Normally-closed Contacts 1
