Position Switches & Sensors

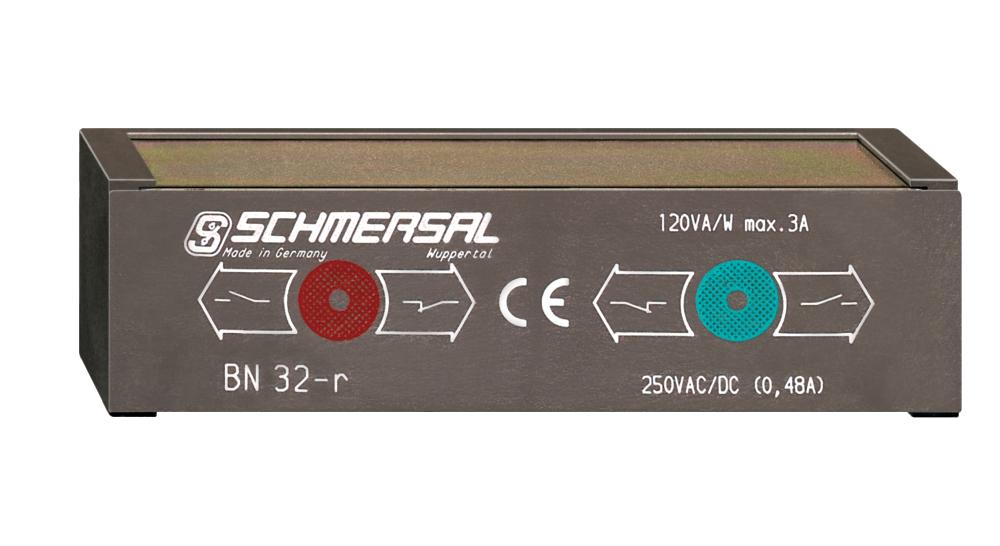

SCHMERSAL BN 32-11RMAGNETIC REED SWITCH 101057243

Product Code: 101057243

Technical Specifications

Brand SCHMERSAL
Actuating Element Magnet
Degree of Protection IP67
Housing Material Glass-fibre, Reinforced Thermoplastic
Maximum Actuating Speed (m/s) 18
Maximum Ambient Temperature (°C) 90
Maximum Bounce Duration (ms) 0.6
Maximum Switching Capacity (VA) 60
Maximum Switching Capacity (W) 60
Maximum Switching Current (A) 1
Maximum Switching Voltage AC (V) 220
Minimum Ambient Temperature (°C) -25
Minimum Bounce Duration (ms) 0.3
Minimum Mechanical Life 1000000000 Operations
Recommended Actuator BP 10 S
Repeat Accuracy (mm) 0.25
Sensor Height (mm) 26
Sensor Length (mm) 24
Sensor Width (mm) 85
Switching Element NO Contact / NC Contact
Switching Frequency 720000/h
Termination Flat Plug-in Connector 4.8mm
