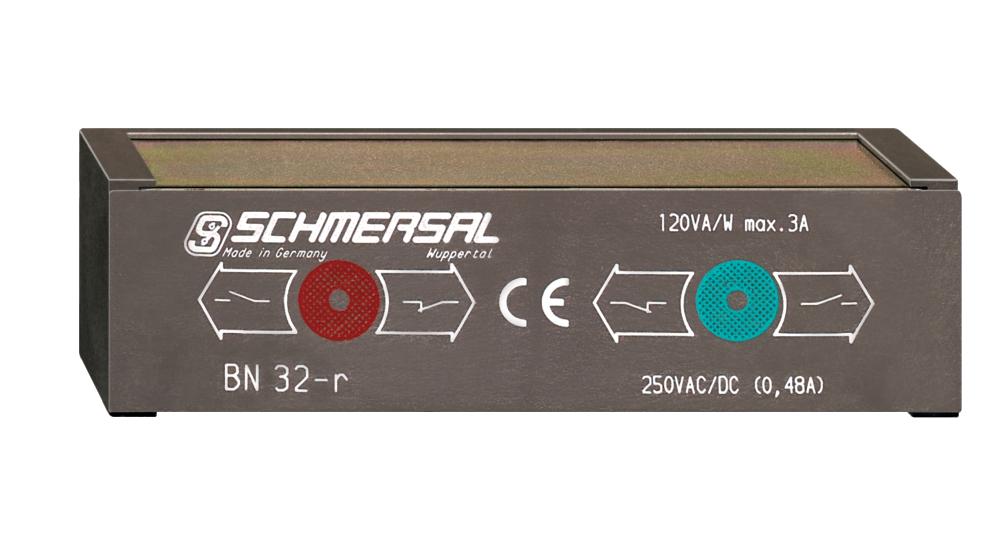

SCHMERSAL BN 32-R-1279 1.0MMAGNETIC REED SWITCH 101080369

Product Code: 101080369

Technical Specifications

Brand SCHMERSAL
Actuating Element Magnet
Cable Length (m) 1
Degree of Protection IP67
Housing Material Glass-fibre, Reinforced Thermoplastic
Maximum Actuating Speed (m/s) 18
Maximum Ambient Temperature (°C) 90
Maximum Switching Capacity (VA) 120
Maximum Switching Capacity (W) 120
Maximum Switching Current (A) 3
Minimum Ambient Temperature (°C) -25
Minimum Mechanical Life 1000000000 Operations
No. of Snap in Contacts 1
Recommended Actuator BP 10 S
Sensor Height (mm) 26
Sensor Length (mm) 24
Sensor Width (mm) 85
Wire Cross Section (mm²) 0.75mm² (Diameter)
