Brand	SCHMERSAL
Actuating Element	Magnet
Maximum Actuating Speed (m/s)	18
Maximum Bounce Duration (ms)	0.6
Maximum Switching Capacity (VA)	120
Maximum Switching Capacity (W)	120
Maximum Switching Frequency (Hz)	300
Minimum Ambient Temperature (°C)	-25
Minimum Bounce Duration (ms)	0.3
Recommended Actuator	BP 10 S
Repeat Accuracy (mm)	0.25
Resistance to Shock (g/ms)	30g, on Sine Wave Oscillation
Resistance to Vibrations	10 ... 55Hz, Amplitude 1mm
Sensor Diameter (mm)	13
Sensor Length (mm)	103
Switching Element	Opener (NC)
Switching Frequency	1080000/h
Termination	Cable
Cable Length (m)	1
Degree of Protection	IP67
Housing Material	Glass-fibre, Reinforced Thermoplastic
Maximum Ambient Temperature (°C)	75
Maximum Switching Current (A)	3
Maximum Switching Voltage AC (V)	250
Minimum Mechanical Life	1000000000 Operations
No. of Normally-closed Contacts	1
Wire Cross Section (mm²)	0.75mm² (Diameter)

Position Switches & Sensors

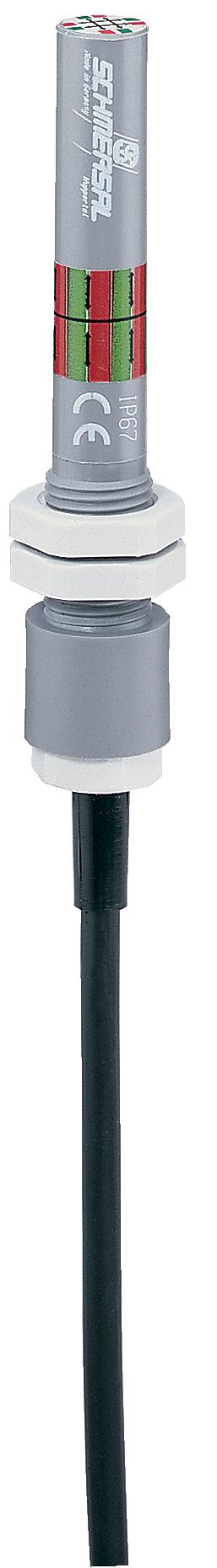

SCHMERSAL BN 65-01Z/VMAGNETIC REED SWITCH 101055831
