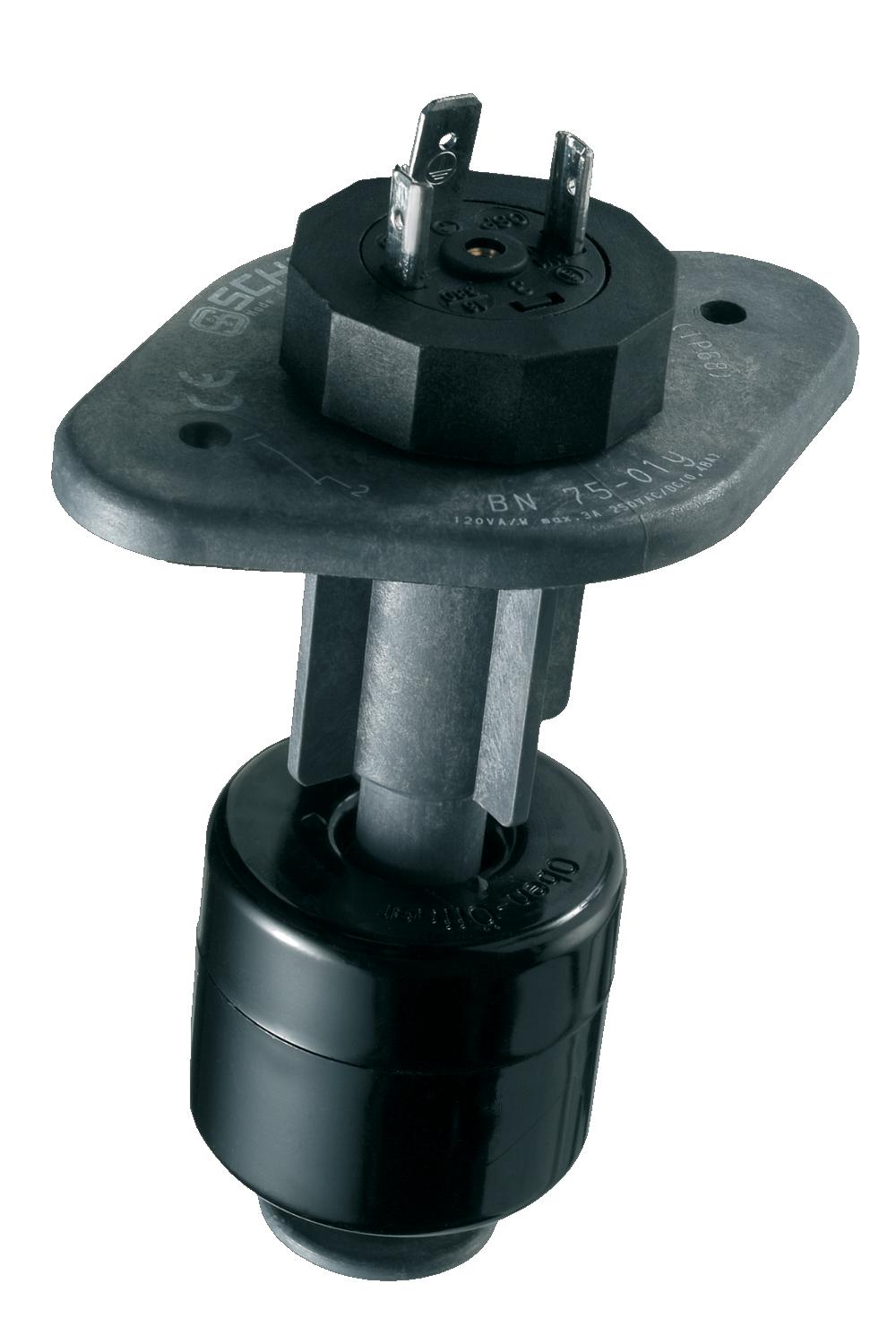

SCHMERSAL BN 75-10YMAGNETIC REED SWITCH 101055743

Product Code: 101055743

Technical Specifications

Brand SCHMERSAL
Actuating Element Magnet
Degree of Protection IP65
Housing Material Glass-fibre, Reinforced Thermoplastic
Maximum Ambient Temperature (°C) 80
Maximum Bounce Duration (ms) 0.6
Maximum Switching Capacity (VA) 60
Maximum Switching Capacity (W) 60
Maximum Switching Current (A) 1
Maximum Switching Voltage AC (V) 220
Minimum Ambient Temperature (°C) -25
Minimum Bounce Duration (ms) 0.3
Minimum Mechanical Life 1000000000 Operations
No. of Normally-open Contacts 1
Sensor Height (mm) 99.5
Sensor Length (mm) 55
Sensor Width (mm) 80
Switching Element NO Contact
Termination Connector
