Housing Material	Glass-fibre, Reinforced Thermoplastic
Minimum Ambient Temperature (°C)	-25
Brand	SCHMERSAL
Maximum Ambient Temperature (°C)	80
Actuating Element	Magnet
Maximum Bounce Duration (ms)	0.6
Maximum Switching Capacity (VA)	60
Maximum Switching Capacity (W)	60
Maximum Switching Current (A)	1
Maximum Switching Voltage AC (V)	220
Minimum Bounce Duration (ms)	0.3
Minimum Mechanical Life	1000000000 Operations
No. of Normally-open Contacts	1
Switching Element	NO Contact
Termination	Pre-wired Cable
Sensor Length (mm)	55
Sensor Width (mm)	80
Sensor Height (mm)	99.5
Degree of Protection	IP67

Position Switches & Sensors

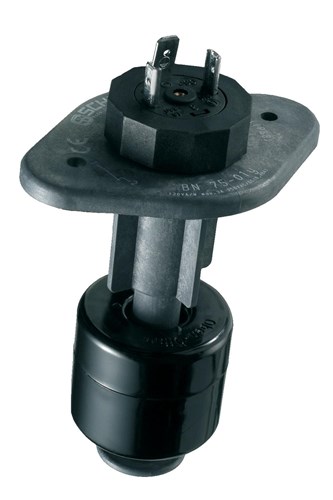

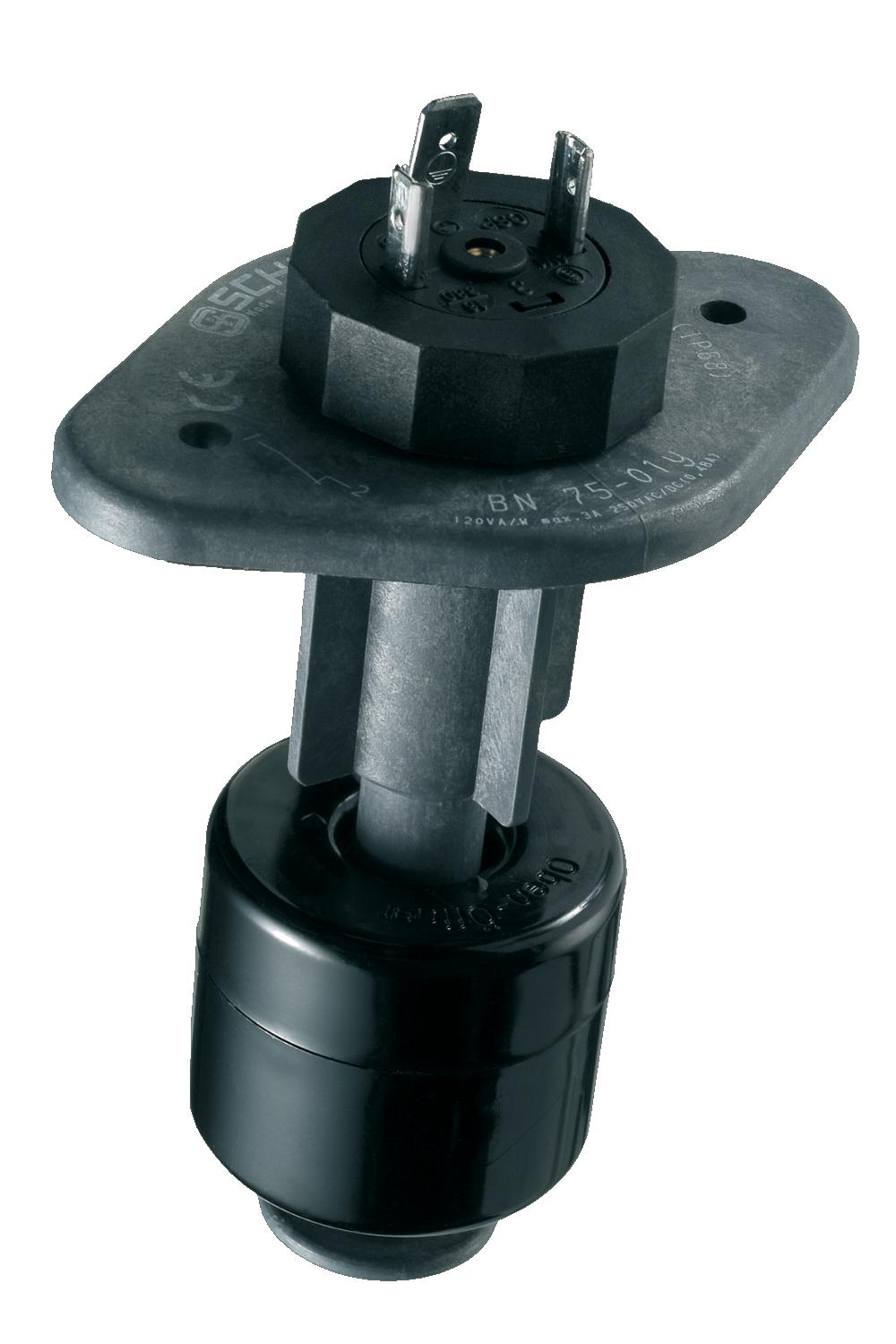

SCHMERSAL BN 75-10Z-1391MAGNETIC REED SWITCH 101055744
