SCHMERSAL BN85-5 MAGNETIC REED SWITCH 101110853
Zoom

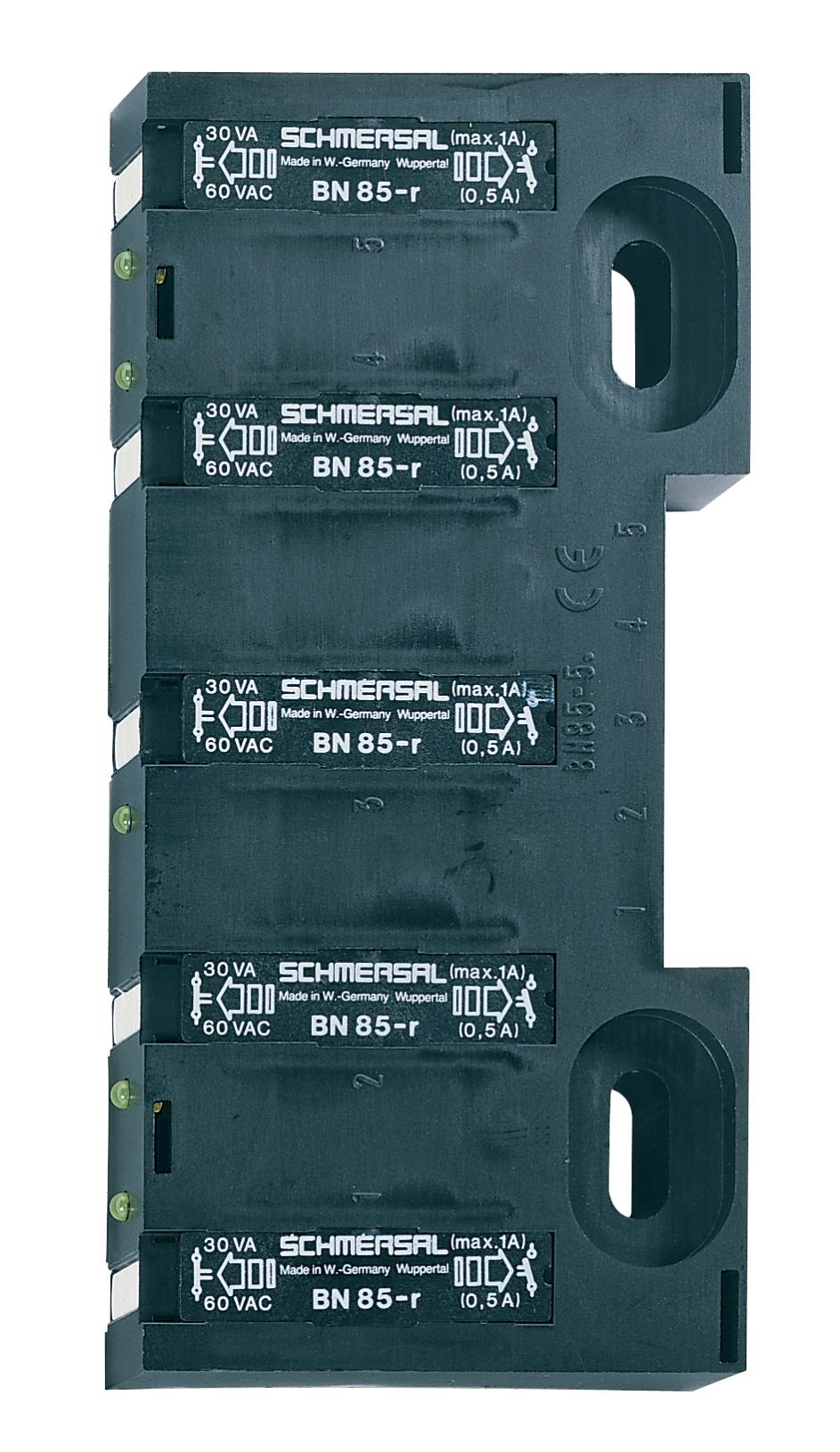

SCHMERSAL BN85-5 MAGNETIC REED SWITCH 101110853
Product Code: 101110853
Explore the Schmersal BN 85 Series Magnetic Reed Switch, designed for precision and durability. This switch features a thermoplastic rectangular enclosure with a 10-pole terminal connector for easy integration into your system. It offers front actuation with a bistable contact switching element, ensuring reliable operation within an actuation distance of 1 to 14 mm. Engineered to handle switching voltages from 12 to 60 VDC and currents up to 1 A, it boasts a maximum switching capacity of 30 VA across five reed contacts. Please note that actuators are sold separately for this model. The switch is built for longevity and can be mounted effortlessly thanks to its enclosure with mounting slots. It operates effectively in temperatures ranging from -10°C to 75°C and maintains an IP30 rating for protection against solid objects. Ideal for various applications in the position sensors category, the Schmersal BN 85 Magnetic Reed Switch is a robust choice for engineers seeking reliable performance and long service life.
Print to PDF
Technical Specifications
Maximum Temperature (°C)
75
Minimum Temperature (°C)
-10
Brand
SCHMERSAL
Series
BN 85
Mounting Type
Threaded
Maximum Nominal Output Voltage DC (V)
60
Minimum Nominal Output Voltage DC (V)
12
Nominal Output Current (A)
1
Nominal Power (W)
30
Degree of Protection
IP30
Documents
Datasheet
IPD Product Catalogue V17
