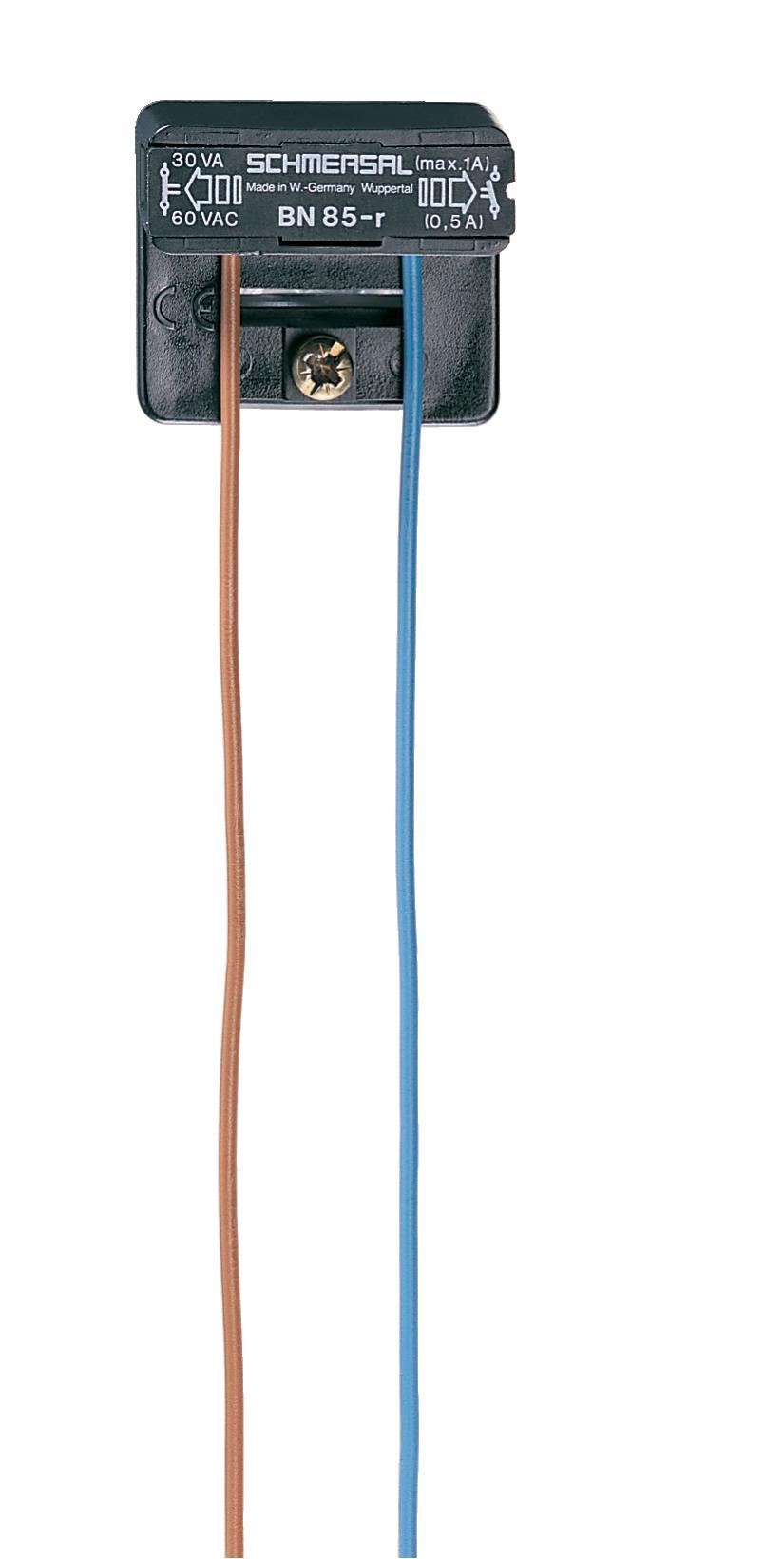

SCHMERSAL BN 85-R-1824-3 1,0M MAGNETIC REED SWITCH 101101624

Product Code: 101101624

Explore the Schmersal BN 85 Series Magnetic Reed Switch, a robust position sensor designed for precision and durability. Encased in a thermoplastic block, this switch features a bistable contact mechanism with actuation from the front, ensuring reliable operation. It offers a flexible sensing range of 2 mm to 40 mm and can handle maximum switching voltages of up to 60 VAC or DC. With a maximum switching current of 1 A and a capacity of 30 VA, it's built for efficiency. This magnetic reed switch is engineered for longevity and easy installation using a clamping foot and sheathed cable. Operating temperatures range from 0°C to 75°C, making it suitable for various environments. Note that actuators are sold separately. The device meets IP40 standards, indicating protection against solid objects larger than 1mm. Ideal for engineers seeking dependable sensors with straightforward mounting options, the Schmersal BN 85 Series enhances system performance while promising long service life in industrial applications.

Technical Specifications

Brand SCHMERSAL
back2archive 1
Degree of Protection IP40
Maximum Nominal Output Voltage AC (V) 60
Maximum Nominal Output Voltage DC (V) 60
Maximum Temperature (°C) 75
Minimum Temperature (°C) 0
Mounting Type Threaded
Nominal Output Current (A) 1
Nominal Power (W) 30
Series BN 85
