When selecting a product for industrial and commercial applications, understanding the technical specifications is crucial. Let's delve into the key features of this versatile sensor to help you determine if it meets your requirements.
This sensor operates at a rated current of 0.25 A and delivers a power output of 3 W, making it suitable for various low-power applications. With an impressive mechanical life of 25 million cycles, you can rely on its durability for long-term use in demanding environments.
The quasi-flush mounting type allows for seamless integration into existing systems while maintaining a sleek profile. Its cable length extends to 2 meters, providing flexibility in installation without compromising on performance.
Constructed from glass fibre reinforced thermoplastic, the housing material offers excellent strength-to-weight ratio and resistance to environmental factors. The sensor boasts an IP67 degree of protection, ensuring complete dust ingress protection and water resistance up to one meter immersion.
Designed to withstand operational temperatures ranging from -25°C to 70°C, this sensor is built for diverse climates and conditions. It adheres to stringent standards such as BG-GS-ET-14, EN IEC 60947-5-3, and EN ISO 13849-1, guaranteeing compliance with industry safety regulations.

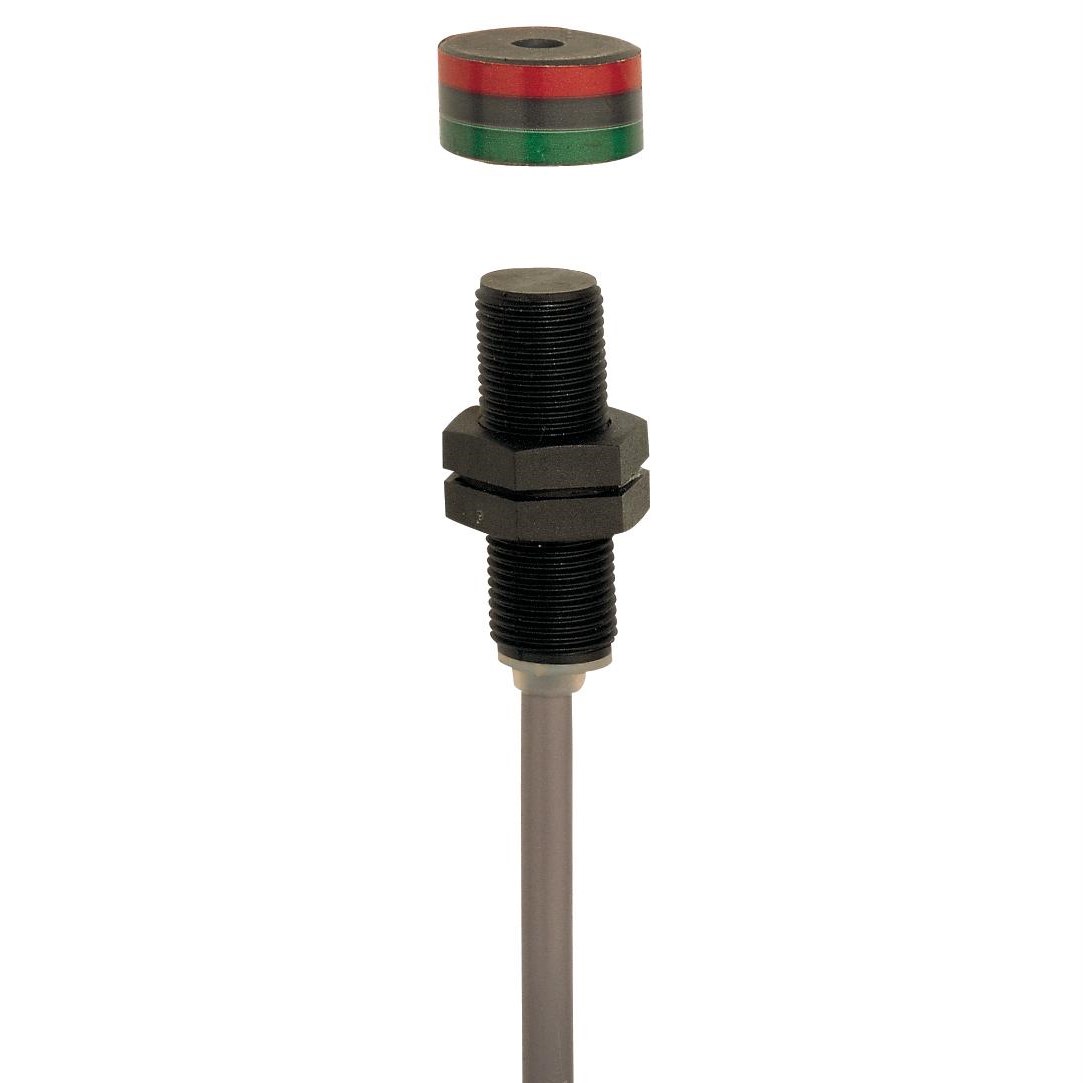

The actuating element is magnet-based which enhances reliability by reducing wear over time compared to mechanical counterparts. Compact with a size of just 38.5 mm in length, it's ideal where space is limited but high performance is required.
Wire size measures at 0.25 sq-mm ensuring efficient electrical connectivity with minimal loss or interference even in challenging settings prone to vibration between frequencies of 10-55 Hz.
In summary, this sensor combines robust construction with reliable performance metrics that align well within various industrial contexts requiring precision sensing capabilities under fluctuating conditions.
