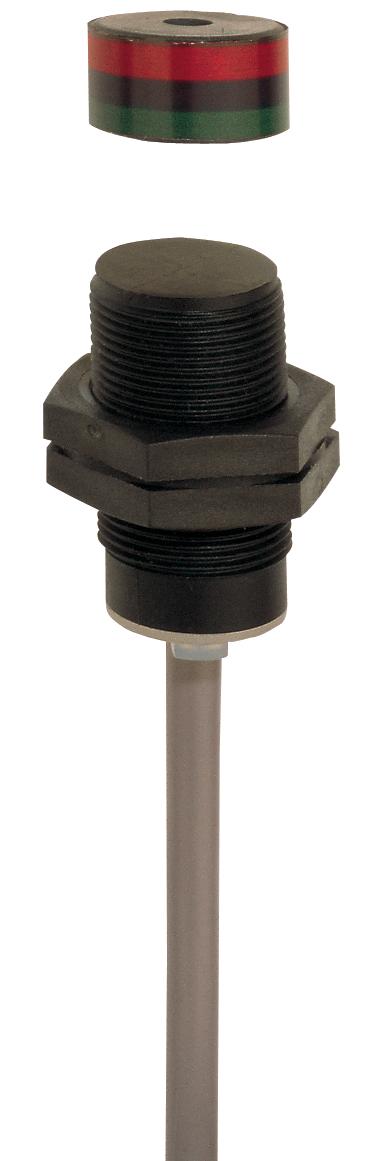

SCHMERSAL MAGNETIC SAFETY SENSOR 101133010

Product Code: 101133010

Technical Specifications

Brand SCHMERSAL
Actuator Type Magnet
Cable Note All indications including the conductor ferrules.
Coding Level According to EN ISO 14119 Low
Contact Material Silver
Degree of Protection IP67 / IP65
EAN 4030660000000
eCl@ss Number, Version 11.0 27-27-26-06
eCl@ss Number, Version 9.0 27-27-26-02
Enclosure Coating Material Painted
Enclosure Material Plastic, glass-fibre-reinforced
ETIM 6.0 EC001487
ETIM 7.0 EC001029
Gross Weight (g) 50
Height (mm) 11
Housing Construction Form Norm construction design
Installation Conditions Not flush
Maximum Actuating Speed (m/s) 1
Maximum Ambient Temperature (°C) 80
Maximum Cable Cross Section (mm²) 1.5
Maximum Fuse Rating 6 A gG D-fuse
Minimum Actuating Speed (mm/min) 160
Minimum Ambient Temperature (°C) -40
Minimum Cable Cross Section (mm²) 0.75
Minimum Mechanical Life 1000000 Operations
Minimum Positive Break Force (N) 19
Mounting Type Snaps onto standard DIN rail to EN 60715
Net Weight (g) 25
No. of Auxiliary Contacts 1
No. of Safety Contacts 2
Overvoltage Category 3
Pollution Degree 3
Protection Class of Operating Resource 3
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 300
Rated Short-circuit Current (A) 1000
Resistance to Shock (g/ms) 30 / 11
Sensor Height (mm) 103.5
Sensor Length (mm) 38
Standards EN IEC 61496-1 / EN IEC 61496-2
Storage Temperature (°C) 25 to 85
Switching Element NC contact, NO contact
Switching Principle Slow action
Terminal Type Connector
Thermal Test Current (A) 16
Utilisation Category DC-13 | AC-15
Utilisation Category DC-13 2.5 A
Width (mm) 90
Wire Cross-Section 13 AWG
Working Principle Mechanical
