Housing Material	Glass-fibre, Reinforced Thermoplastic
Installation Conditions	Quasi-flush
Direction of Motion	Head-on to the Active Surface
Maximum Storage Temperature (°C)	70
Minimum Ambient Temperature (°C)	-25
Minimum Storage Temperature (°C)	-25
Brand	SCHMERSAL
Recommended Safety Switchgear	SRB-E-301ST
Recommended Actuator	BP 10
Maximum Ambient Temperature (°C)	70
Wire Cross Section (mm²)	0.25mm² (Diameter)
Actuating Element	Magnet
Maximum Switching Capacity (W)	3
Maximum Switching Current (A)	0.25
Maximum Switching Frequency (Hz)	5
No. of Cables	4
No. of Normally-closed Contacts	1
No. of Normally-open Contacts	1
No. of Safety Contacts	2
Resistance to Shock (g/ms)	30g / 11ms
Resistance to Vibrations	10 ... 55Hz, Amplitude 1mm
Termination	Cable
Cable Length (m)	13
Sensor Length (mm)	36
Degree of Protection	IP67
Standards and Approvals	EN IEC 60947-5-3, EN ISO 13849-1

Presence Sensing Safety Devices

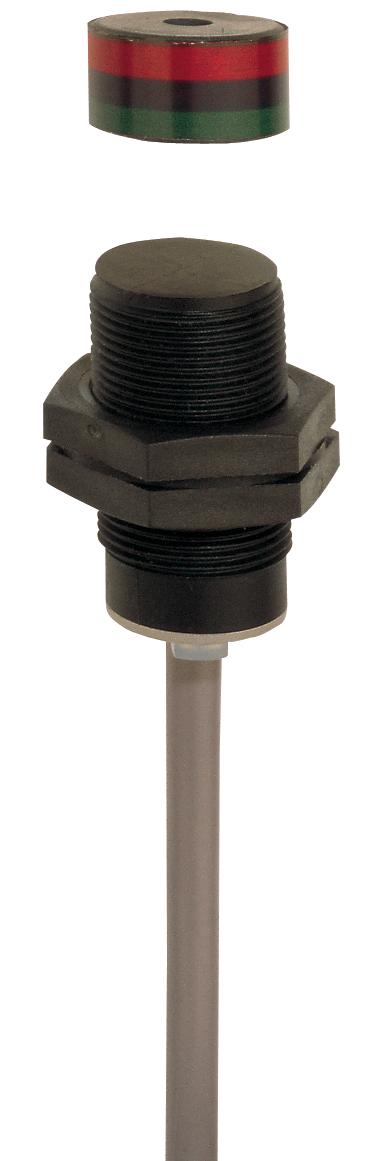

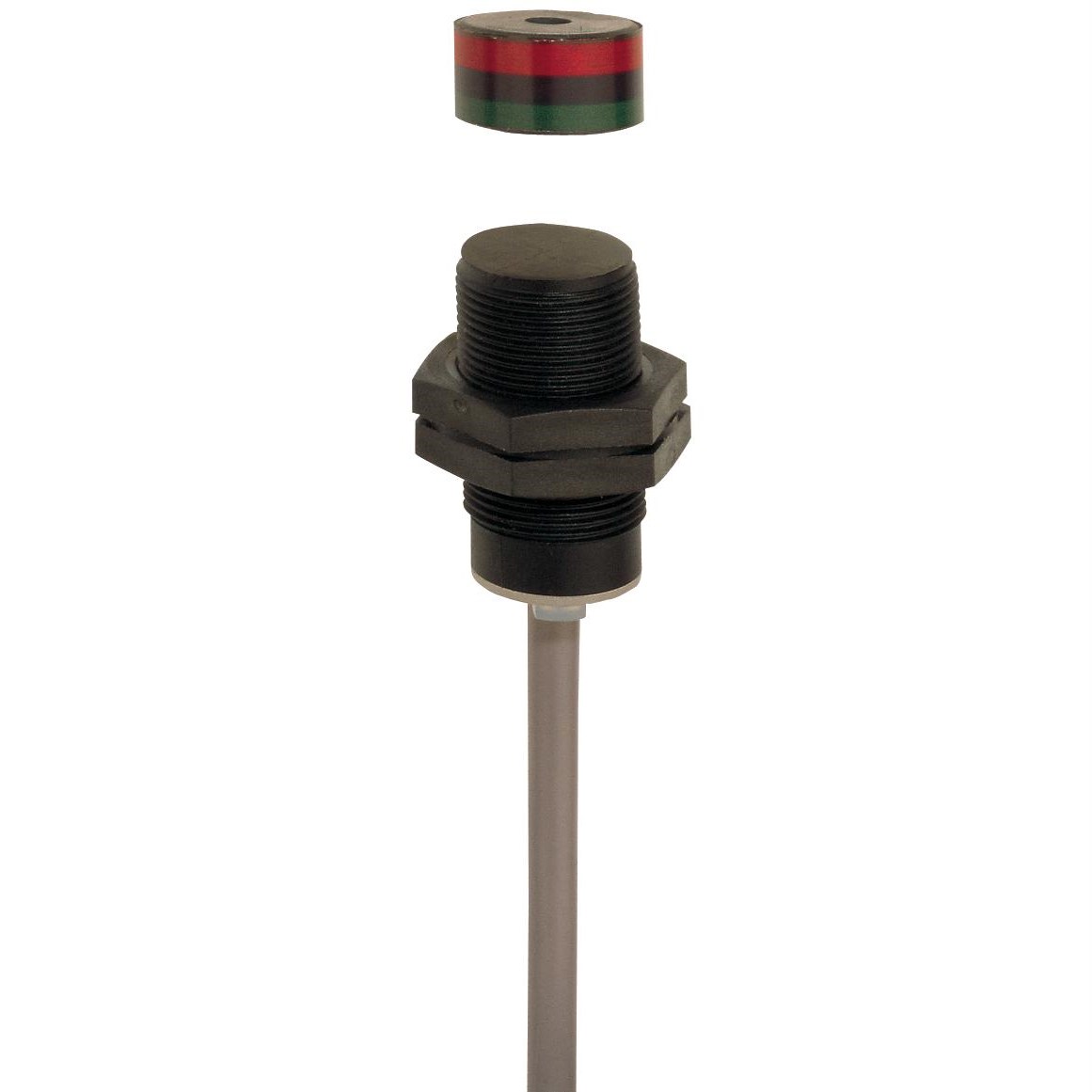

SCHMERSAL BNS 180-11Z 13.0MMAGNETIC SAFETY SENSOR 101150653
