Housing Material	Glass-fibre, Reinforced Thermoplastic
Installation Conditions	Not Flush
Direction of Motion	Head-on to the Active Surface
Maximum Storage Temperature (°C)	70
Minimum Ambient Temperature (°C)	-25
Minimum Storage Temperature (°C)	-25
Brand	SCHMERSAL
Recommended Safety Switchgear	SRB-E-301ST
Recommended Actuator	BPS 250
Maximum Ambient Temperature (°C)	70
Wire Cross Section (mm²)	0.25mm² (Diameter)
Actuating Element	Magnet
Maximum Switching Capacity (W)	1
Maximum Switching Current (A)	0.1
Maximum Switching Frequency (Hz)	5
No. of Cables	4
No. of Normally-closed Contacts	1
No. of Normally-open Contacts	1
Resistance to Shock (g/ms)	30g / 11ms
Resistance to Vibrations	10 ... 150Hz, Amplitude 0.35mm
Termination	Cable
Cable Length (m)	10
Sensor Length (mm)	13
Sensor Width (mm)	33
Sensor Height (mm)	25
Degree of Protection	IP67
Standards and Approvals	EN IEC 60947-5-3, EN ISO 13849-1

Presence Sensing Safety Devices

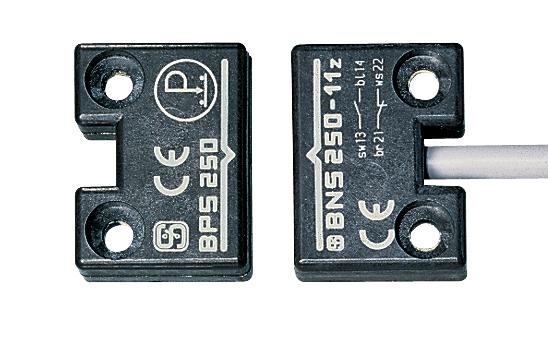

SCHMERSAL BNS 250-11Z 10.0MMAGNETIC SAFETY SENSOR 101129748
