Presence Sensing Safety Devices

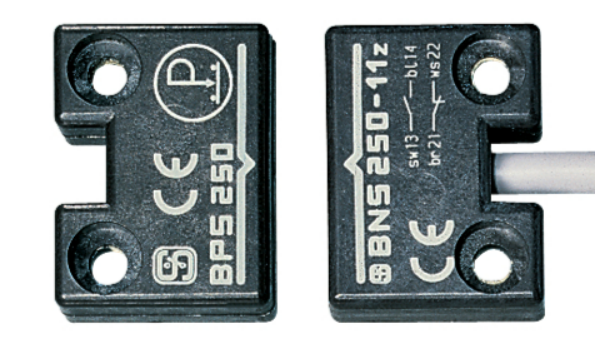

SCHMERSAL BNS 250-12ZG 10.0M 101150803

Product Code: 101150803

Technical Specifications

Housing Material Glass-Fibre, Reinforced Thermoplastic
Gross Weight (g) 360
Brand SCHMERSAL
Working Principle Magnetic Drive
Ambient Temperature Range (°C) -25 to 70
Installation Not Flush
Actuating Element Magnet
Maximum Switching Capacity (A) 0.01
Maximum Switching Capacity (W) 0.24
Maximum Switching Voltage DC (V) 24
Resistance to Shock (g/ms) 30 g / 11 ms
Resistance to Vibrations 10 - 150 Hz, Amplitude 0.35 mm
Cable Length (m) 10
Sensor Length (mm) 13
Sensor Width (mm) 33
Sensor Height (mm) 25
Degree of Protection IP67
