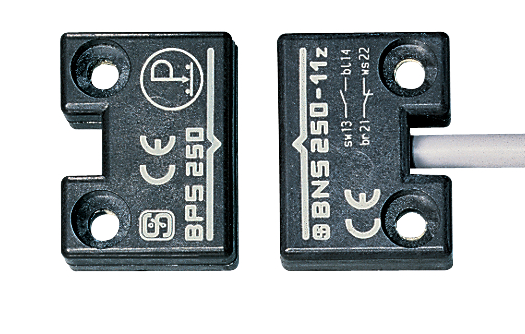

SCHMERSAL MAGENETIC SAFETY SENSORS BNS 250-12ZG 2.0M 101148396

Product Code: 101148396

Technical Specifications

Housing Material Glass-Fibre, Reinforced Thermoplastic
Gross Weight (g) 82
Brand SCHMERSAL
Working Principle Magnetic Drive
Ambient Temperature Range (°C) -25 to 70
Actuating Element Magnet
Maximum Switching Capacity (A) 0.01
Maximum Switching Capacity (W) 0.24
Maximum Switching Voltage DC (V) 24
No. of Cable Wires 4
No. of Normally-closed Contacts 2
No. of Normally-open Contacts 1
Resistance to Shock (g/ms) 30/11
Resistance to Vibrations 10 - 150 Hz, Amplitude 0.35 mm
Sensor Length (mm) 13
Sensor Width (mm) 33
Sensor Height (mm) 25
Degree of Protection IP67
