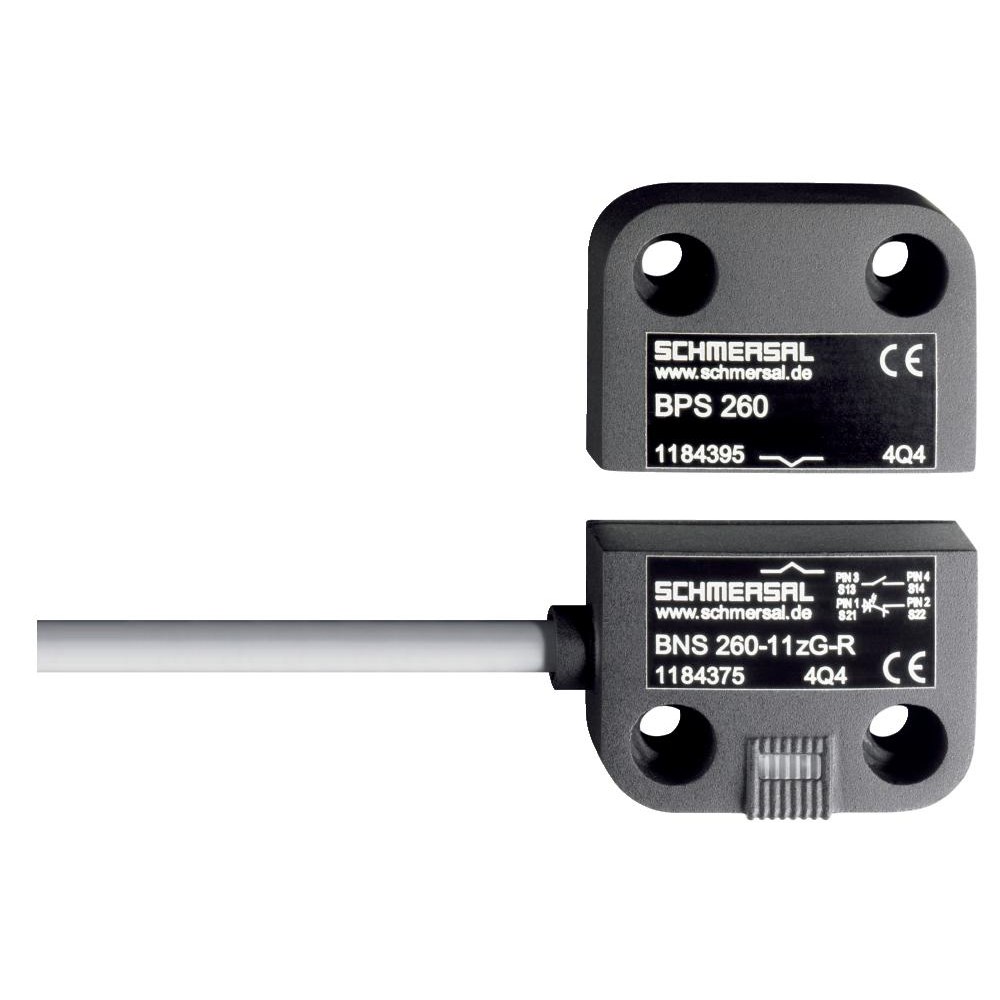

Schmersal 101184390 Magnetic Safety Sensor 1m Cable

Product Code: 101184390

  • Operates at 24 VDC, 0.01 A
  • Durable with 25M cycles lifespan
  • Compact size: 13x26x36 mm
  • IP67 protection for harsh environments
  • Quasi-flush mount design
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Cable Cross Section (mm²) 2.5
Rated Insulation Voltage (V) 300
Rated Impulse Withstand Voltage (kV) 2.5
Enclosure Material Plastic, glass-fibre-reinforced
Utilisation Category DC-13 | AC-15
No. of Safety Contacts 2
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Minimum Ambient Temperature (°C) 0
Standards EN IEC 60947-5-1 / DIN VDE 0660-200 / BG-GS-ET-15
Sensor Length (mm) 32.5
Switching Principle Slow action
EAN 4030660000000
Nominal Output Current (A) 0.01
eCl@ss Number, Version 9.0 27-27-27-04
Sensor Height (mm) 114
Rated Short-circuit Current (A) 100
ETIM 7.0 EC002549
ETIM 6.0 EC002549
eCl@ss Number, Version 11.0 27-27-27-04
Minimum Mechanical Life 30000000 Operations
Gross Weight (g) 616
Net Weight (g) 1685
Maximum Fuse Rating 10 A gG D-fuse slow blow
Switching Element NO contact, NC contact
Rated Maximum Operational Voltage DC (V) 24
Maximum Ambient Temperature (°C) 80
Nominal Power (W) 0.2
Minimum Cable Cross Section (mm²) 0.25
Maximum Actuating Speed (m/s) 0.3
Product Type Safety Sensor
Brand SCHMERSAL
Series BNS260
Actuating Element Magnet
Actuator Type Offset roller lever K210
Cable Length 1 m
Contact Material Silver
Degree of Protection IP67
Housing Material Glass Fibre Reinforced Thermoplastic
Mechanical Life 25000000 Cycles
Mounting Type Quasi-Flush
Operational Temperature -25 to 70 deg C
Rated Current 0.01 A
Rated Frequency 5 Hz
Rated Insulation Voltage 75 VDC
Rated Power 0.24 W
Rated Voltage 24 VDC
Sensor Size 13 mm L x 26 mm W x 36 mm H
Short Circuit Protection 100 A
Standards and Approvals BG-GS-ET-14; EN IEC 60947-5-3; EN ISO 13849-1
Terminal Type Cable
Vibration Resistance 10-55 Hz
Wire Size 0.25 sq-mm

Description

Enhance machine safety with the Schmersal BNS260 series safety sensor, designed for reliability and durability. This thermoplastic-encased sensor features an integral system diagnostics to ensure consistent operation. It is equipped with a magnetic actuating element and is suitable for machines with left-hinged doors. The sensor supports three openers and includes two safety contacts, ensuring secure shutdown mechanisms. With six cable wires and a 1-meter cable length, installation is straightforward. The BNS260 operates at a switching voltage of 24 VDC, a minimal switching current of 0.01 A, and has a low switching capacity of 0.2 W, making it an energy-efficient choice for your machine safety needs.
