Specifications

Rated Insulation Voltage (V)	500
Rated Impulse Withstand Voltage (kV)	4
Enclosure Material	Aluminium
Utilisation Category	DC-13 \| AC-15
Maximum Ambient Temperature (°C)	80
Minimum Cable Cross Section (mm²)	1.5
Maximum Actuating Speed (m/s)	0.2
No. of Safety Contacts	2
Minimum Ambient Temperature (°C)	-30
Standards	EN IEC 60947-5-1 / EN ISO 13849-1 / BG-GS-ET-15
Sensor Length (mm)	65.3
Switching Principle	Slow action
EAN	4030660000000
eCl@ss Number, Version 9.0	27-27-27-04
Sensor Height (mm)	85
ETIM 7.0	EC002549
ETIM 6.0	EC000030
eCl@ss Number, Version 11.0	27-27-26-92
Minimum Mechanical Life	20000000 Operations
Gross Weight (g)	755
Utilisation Category AC-15	230 VAC
Utilisation Category DC-13	24 VDC
Net Weight (g)	183.34
Maximum Fuse Rating	6 A gG D-fuse to DIN EN 60269-1
Switching Element	NC contact, NO contact
Maximum Cable Cross Section (mm²)	2.5

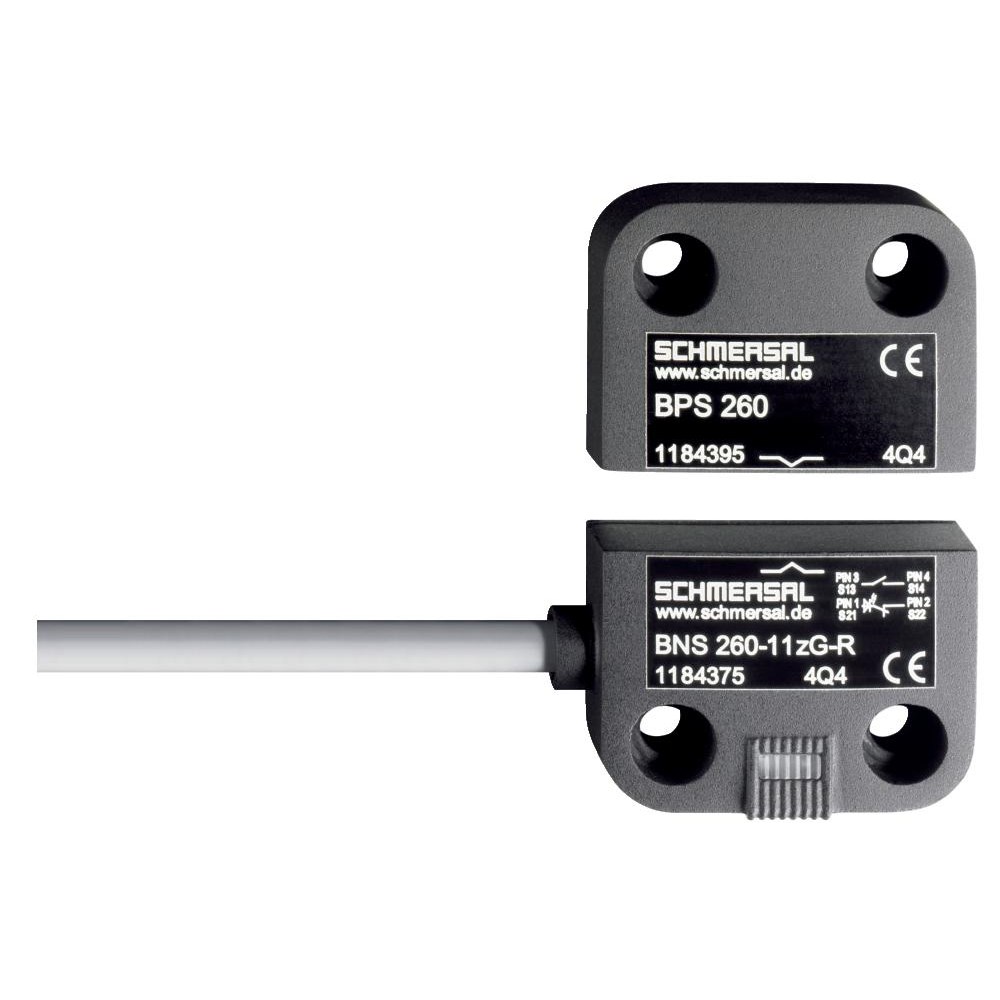

Product Type	Magnetic Safety Sensor
Brand	SCHMERSAL
Actuating Element	Magnet
Cable Length	5 m
Contact Material	Silver
Degree of Protection	IP67
Housing Material	Glass Fibre Reinforced Thermoplastic
Mechanical Life	25000000 Cycles
Mounting Type	Quasi-Flush
Operational Temperature	-25 to 70 deg C
Rated Current	0.4 A
Rated Frequency	5 Hz
Rated Insulation Voltage	50 VAC
Rated Power	10 VA
Rated Voltage	75 VDC
Sensor Size	13 mm L x 26 mm W x 36 mm H
Short Circuit Protection	100 A
Standards and Approvals	BG-GS-ET-14; EN IEC 60947-5-3; EN ISO 13849-1
Terminal Type	Screw terminals M20 x 1.5
Vibration Resistance	10-55 Hz
Wire Size	0.25 sq-mm
