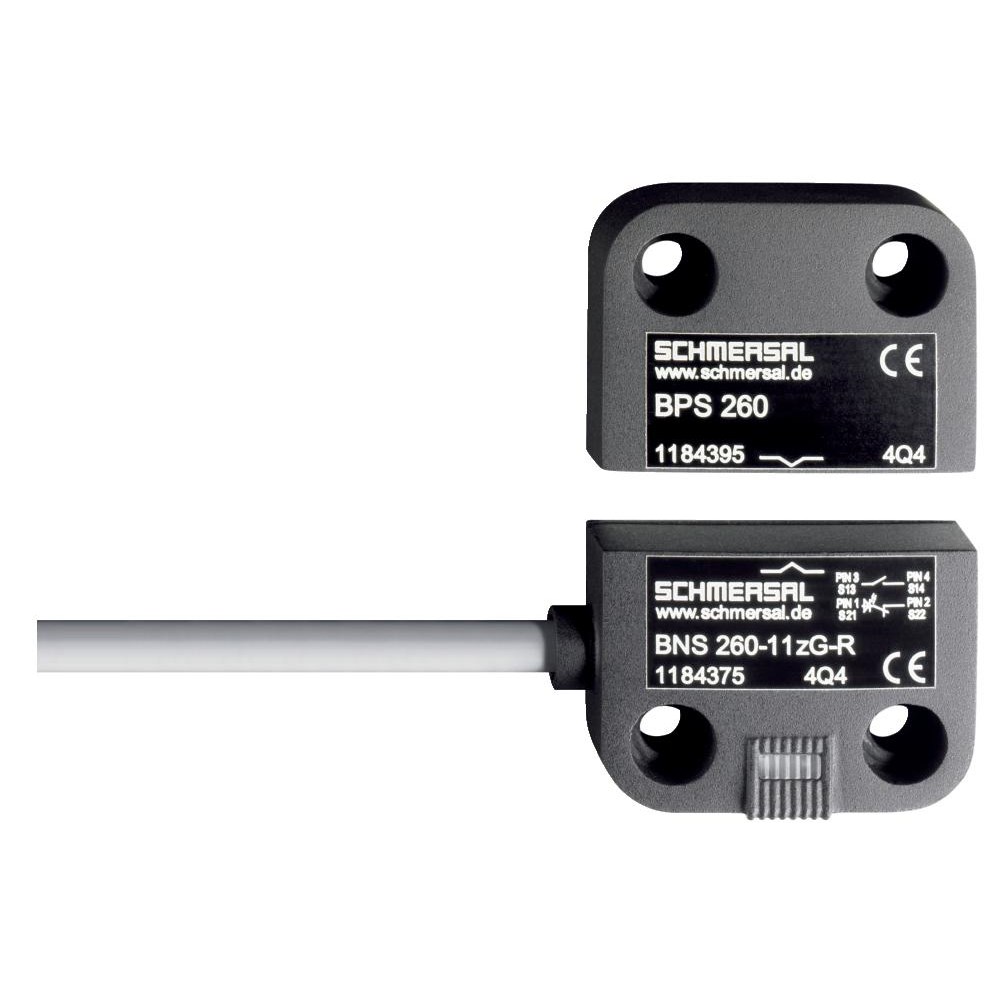

Schmersal 101184388 Magnetic Safety Sensor 1m Cable

Product Code: 101184388

  • Operates at 75 VDC with 0.4 A current
  • Durable with 25 million mechanical cycles
  • Compact size: 13x26x36 mm
  • IP67 protection for harsh environments
  • Wide temp range: -25 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Nominal Output Current (A) 0.4
Rated Maximum Operational Voltage DC (V) 75
Nominal Power (W) 10
Product Type Safety Sensor
Brand SCHMERSAL
Series BNS260
Actuating Element Magnet
Cable Length 1 m
Degree of Protection IP67
Housing Material Glass Fibre Reinforced Thermoplastic
Mechanical Life 25000000 Cycles
Mounting Type Quasi-Flush
Operational Temperature -25 to 70 deg C
Rated Current 0.4 A
Rated Frequency 5 Hz
Rated Insulation Voltage 50 VAC
Rated Power 10 VA
Rated Voltage 75 VDC
Sensor Size 13 mm L x 26 mm W x 36 mm H
Short Circuit Protection 100 A
Standards and Approvals BG-GS-ET-14; EN IEC 60947-5-3; EN ISO 13849-1
Vibration Resistance 10-55 Hz
Wire Size 0.25 sq-mm

Description

Enhance machine safety with the Schmersal BNS260 series safety sensor. This robust device features a thermoplastic enclosure designed for durability and reliability. It comes equipped with coding capabilities, two openers, and one shutter to ensure secure operations. The sensor includes two safety contacts and six cable wires for comprehensive connectivity. Its actuating element is a magnet, suitable for left door hinge configurations. Installation is straightforward with its terminal connector cable, which measures 1 meter in length for flexible placement. With a switching voltage of 75 VDC, current of 0.4 A, and capacity of 10 VA, this safety sensor ensures precise operation in various industrial settings under the Machine Safety category.
