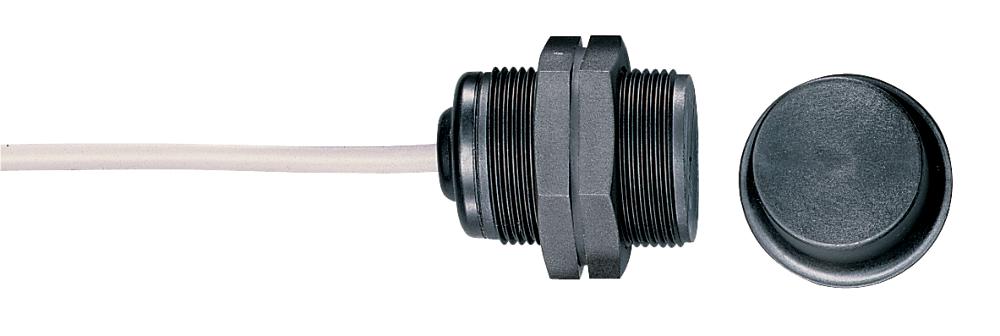

SCHMERSAL MAGNETIC SAFETY SENSOR 101147511

Product Code: 101147511

Technical Specifications

Brand SCHMERSAL
Actuator Type Tilt lever
Cable Note All indications including the conductor ferrules.
Coding Level According to EN ISO 14119 Low
Contact Material Silver
Degree of Protection IP67 / IP65
EAN 4030660000000
eCl@ss Number, Version 11.0 27-37-12-43
eCl@ss Number, Version 9.0 27-37-12-13
Enclosure Coating Material Painted
Enclosure Material Glass-fibre, reinforced thermoplastic
ETIM 6.0 EC000222
ETIM 7.0 EC000222
Gross Weight (g) 270
Housing Construction Form Norm construction design
Maximum Actuating Speed (m/s) 1
Maximum Ambient Temperature (°C) 65
Maximum Cable Cross Section (mm²) 2.5
Maximum Fuse Rating 6 A gG D-fuse
Minimum Actuating Speed (mm/min) 60
Minimum Ambient Temperature (°C) -25
Minimum Cable Cross Section (mm²) 0.75
Minimum Mechanical Life 10000000 Operations
Minimum Positive Break Force (N) 8.5
Net Weight (g) 283.9
No. of Auxiliary Contacts 1
No. of Safety Contacts 1
Overvoltage Category 3
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 300
Rated Short-circuit Current (A) 1000
Resistance to Shock (g/ms) 30 / 11
Sensor Height (mm) 115
Sensor Length (mm) 21.5
Standards EN IEC 61496-1 / EN IEC 61496-2
Storage Temperature (°C) -25 to 85
Switching Element NC contact, NO contact
Switching Principle Snap action
Terminal Type Connector
Utilisation Category DC-13 | AC-15
Utilisation Category DC-13 0.05 A
Wire Cross-Section 15 AWG
Working Principle Electromechanical
