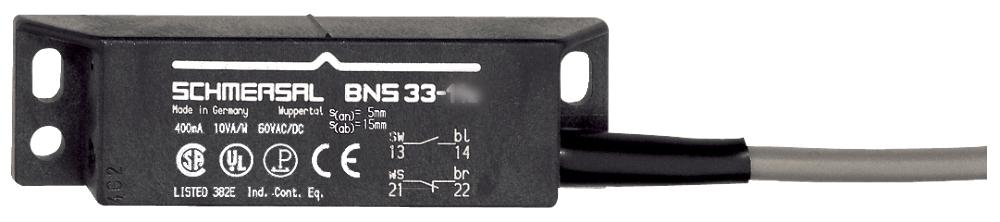

SCHMERSAL BNS 33-11Z 10.0MMAGNETIC SAFETY SENSOR 101121675

Product Code: 101121675

Technical Specifications

Brand SCHMERSAL
Actuating Element Magnet
Degree of Protection IP67
Housing Material Glass-fibre, Reinforced Thermoplastic
Installation Conditions Not Flush
Maximum Ambient Temperature (°C) 70
Maximum Storage Temperature (°C) 70
Maximum Switching Frequency (Hz) 5
Minimum Ambient Temperature (°C) -25
Minimum Storage Temperature (°C) -25
Recommended Actuator BPS 33-2326
Resistance to Shock (g/ms) 30g / 11ms
Resistance to Vibrations 10 ... 55Hz, Amplitude 1mm
Sensor Height (mm) 25
Sensor Length (mm) 13
Sensor Width (mm) 88
Standards and Approvals EN IEC 60947-5-3, EN ISO 13849-1
