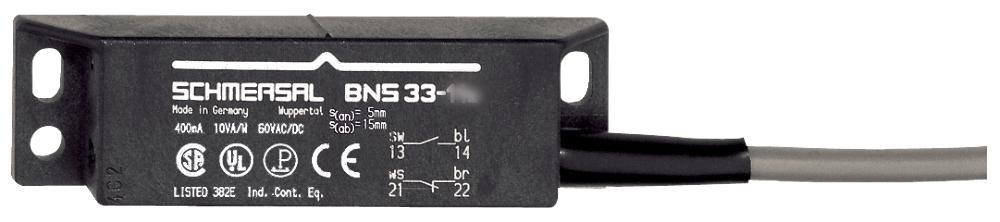

SCHMERSAL BNS 33-11Z 2.0MMAGNETIC SAFETY SENSOR 101108977

Product Code: 101108977

Technical Specifications

Actuating Element Magnet
Direction of Motion Head-on to the Active Surface
Installation Conditions Not Flush
Maximum Storage Temperature (°C) 70
Maximum Switching Capacity (W) 10
Maximum Switching Frequency (Hz) 5
Minimum Ambient Temperature (°C) -25
Minimum Storage Temperature (°C) -25
Recommended Actuator BPS 33-2326
Recommended Safety Switchgear SRB-E-301ST
Resistance to Shock (g/ms) 30g / 11ms
Resistance to Vibrations 10 ... 55Hz, Amplitude 1mm
Sensor Height (mm) 25
Sensor Length (mm) 13
Sensor Width (mm) 88
Termination Cable
Brand SCHMERSAL
Cable Length (m) 2
Degree of Protection IP67
Housing Material Glass-fibre, Reinforced Thermoplastic
Maximum Ambient Temperature (°C) 70
Maximum Switching Current (A) 0.4
No. of Normally-closed Contacts 1
No. of Normally-open Contacts 1
Standards and Approvals EN IEC 60947-5-3, EN ISO 13849-1
Wire Cross Section (mm²) 0.25mm² (Diameter)
