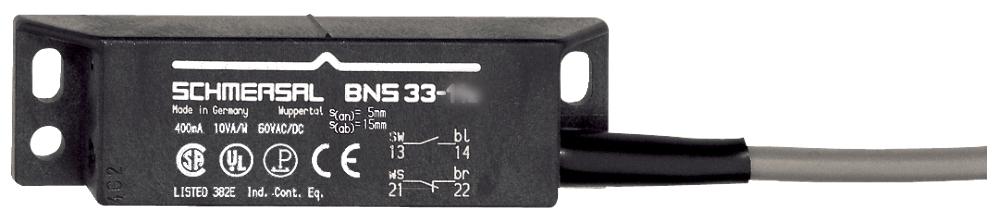

SCHMERSAL BNS 33-11Z 4.0MMAGNETIC SAFETY SENSOR 101130599

Product Code: 101130599

Technical Specifications

Housing Material Glass-fibre, Reinforced Thermoplastic
Installation Conditions Not Flush
Direction of Motion Head-on to the Active Surface
Maximum Storage Temperature (°C) 70
Minimum Ambient Temperature (°C) -25
Minimum Storage Temperature (°C) -25
Brand SCHMERSAL
Recommended Safety Switchgear SRB-E-301ST
Recommended Actuator BPS 33-2326
Maximum Ambient Temperature (°C) 70
Wire Cross Section (mm²) 0.25mm² (Diameter)
Actuating Element Magnet
Maximum Switching Capacity (W) 10
Maximum Switching Current (A) 0.4
Maximum Switching Frequency (Hz) 5
No. of Normally-closed Contacts 1
No. of Normally-open Contacts 1
Resistance to Shock (g/ms) 30g / 11ms
Resistance to Vibrations 10 ... 55Hz, Amplitude 1mm
Termination Cable
Cable Length (m) 11
Sensor Length (mm) 13
Sensor Width (mm) 88
Sensor Height (mm) 25
Degree of Protection IP67
Standards and Approvals EN IEC 60947-5-3, EN ISO 13849-1
