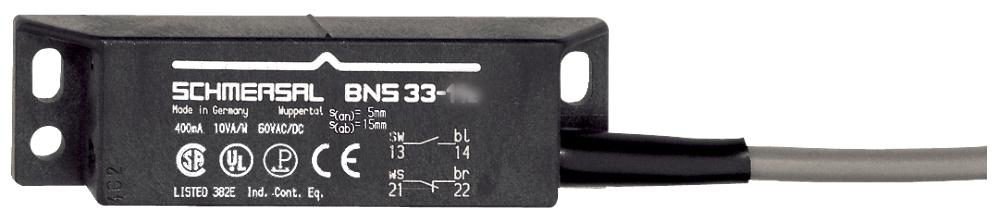

SCHMERSAL BNS33-11ZG-2237 SAFETY SENSOR 101135576

Product Code: 101135576

The Schmersal BNS33 series safety sensor is a robust machine safety solution designed with a thermoplastic enclosure and an integral system for diagnostics. This sensor features a unique coding system and requires an evaluation unit to function properly. It is equipped with one opener and one shutter, utilizing a magnet as its actuating element. The lateral active area ensures precise operation, while the terminal connector cable, measuring 1 meter in length, provides easy installation. Operating at a switching voltage of 24 VDC with a current of 0.01 A and a capacity of 0.2 W, this safety sensor is an essential component for any machine safety application where reliable performance is critical.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Nominal Output Current (A) 0.01
Nominal Power (W) 0.2
Rated Maximum Operational Voltage DC (V) 24
Series BNS33
