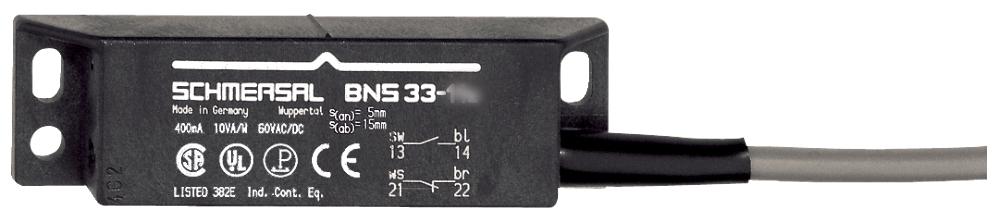

Brand |
SCHMERSAL |
|
Actuator Type |
Magnet |
|
Cable Length (m) |
2 |
|
Contact Material |
Silver |
|
Degree of Protection |
IP67 / IP65 |
|
Depth (mm) |
121 |
|
Enclosure Material |
Polyamide PA 66 GV, self-extinguishing, hardly flammable |
|
Height (mm) |
100 |
|
Latching Force (N) |
30 |
|
Maximum Actuating Speed (m/s) |
2 |
|
Maximum Ambient Temperature (°C) |
80 |
|
Maximum Cable Cross Section (mm²) |
2.5 |
|
Maximum Switching Capacity (W) |
0.24 |
|
Minimum Cable Cross Section (mm²) |
2 x 0.75 |
|
Mounting Type |
Snaps onto standard DIN rail to EN 60715 |
|
No. of Safety Contacts |
1 |
|
Overvoltage Category |
3 |
|
Pollution Degree |
2 |
|
Rated Impulse Withstand Voltage (kV) |
4 |
|
Terminal Type |
Flat plug-in connector - 6.3 mm x 0.8 mm / 2 x 2.8 mm x 0.8 mm |
|
Utilisation Category |
DC-13 | AC-15 |
|
Rated Insulation Voltage (V) |
300 |
|
Width (mm) |
40 |
|
Actuator Recommendation |
AZM 40-B1 |
|
Cable Note |
All indications including the conductor ferrules. |
|
Coding Level According to EN ISO 14119 |
Low |
|
Design of Control Element |
Short-circuit proof, p-type |
|
EAN |
4030660000000 |
|
eCl@ss Number, Version 11.0 |
27-37-12-12 |
|
eCl@ss Number, Version 9.0 |
27-37-12-10 |
|
Enclosure Coating Material |
Painted |
|
ETIM 6.0 |
EC000221 |
|
ETIM 7.0 |
EC000223 |
|
Gross Weight (g) |
1250 |
|
Housing Construction Form |
Norm construction design |
|
Installation Conditions |
Quasi-flush |
|
Maximum Bounce Duration (ms) |
3 |
|
Maximum Fuse Rating |
6 A gG D-fuse |
|
Minimum Actuating Speed (mm/min) |
10 |
|
Minimum Mechanical Life |
1000000 Operations |
|
Minimum Positive Break Force (N) |
19 |
|
Net Weight (g) |
2100 |
|
No. of Auxiliary Contacts |
1 |
|
Number of Normally Closed (NC) Contacts |
1 |
|
Positive Break Travel (mm) |
8 |
|
Protection Class of Operating Resource |
3 |
|
Rated Operating Current (mA) |
1200 |
|
Rated Short-circuit Current (A) |
400 |
|
Recommended Safety Switchgear |
SRB-E-301ST | SRB-E-201LC |
|
Resistance to Shock (g/ms) |
30 / 11 |
|
Sensor Height (mm) |
36 |
|
Standards |
EN IEC 60947-5-3 / BG-GS-ET-14 |
|
Storage Temperature (°C) |
-25 to 70 |
|
Switching Element |
Opener (NC) |
|
Switching Principle |
Slow action |
|
Width of Sensor (mm) |
40.5 |
|
Wire Cross-Section |
0.75 mm |
|
Minimum Ambient Temperature (°C) |
-25 |
