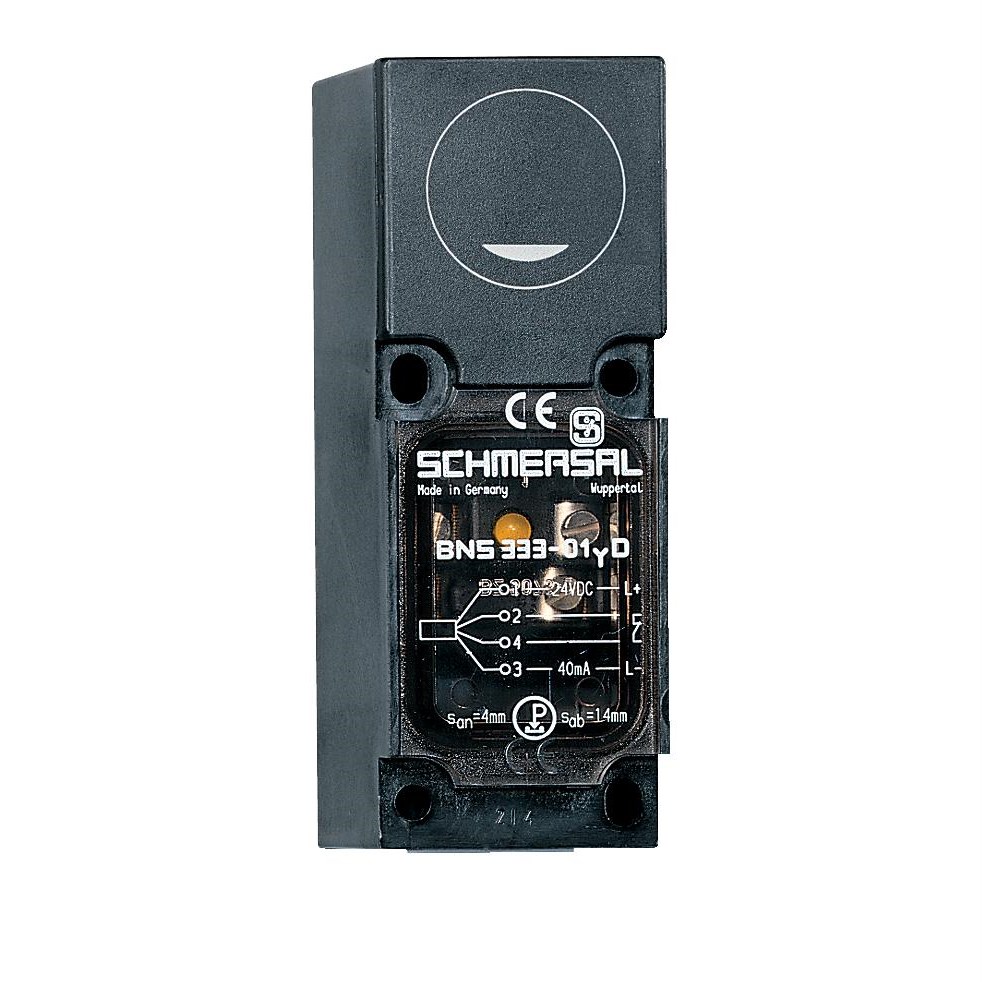

Schmersal 101169806 Magnetic Safety Sensor

Product Code: 101169806

  • Rated for 250 VAC and 5 A
  • Durable with 20 million cycles
  • IP65 protection against dust and water
  • Operates in -25 to 55°C range
  • Glass fibre reinforced thermoplastic housing
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Nominal Power (W) 1250
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Nominal Output Current (A) 5
Rated Maximum Operational Voltage AC (V) 250
Product Type Safety Sensor
Brand SCHMERSAL
Series BNS333
Actuating Element Magnet
Degree of Protection IP65
Housing Material Glass Fibre Reinforced Thermoplastic
Mechanical Life 20000000 Cycles
Operational Temperature -25 to 55 deg C
Rated Current 5 A
Rated Frequency 5 Hz
Rated Power 1250 W
Rated Voltage 250 VAC
Sensor Size 39 mm L x 52 mm W x 90 mm H
Standards and Approvals BG-GS-ET-14; EN IEC 60947-5-3; EN ISO 13849-1
Vibration Resistance 10-55 Hz
Wire Size 15 AWG

Description

The Schmersal BNS333 safety sensor is a robust solution for machine safety applications, featuring a thermoplastic enclosure designed to withstand harsh environments. This sensor is equipped with an integrated safety monitoring module and integral system diagnostics to ensure reliable operation. With coding capabilities and an actuating element that utilizes a magnet, the BNS333 offers precise functionality. It supports a switching voltage of 250 VAC, a current of 5 A, and has a switching capacity of 1250 W. The device includes one opener and one safety contact but does not require any cable wires due to its cover-side active area. Connections are made simple with its screw terminal connector. Ideal for engineers seeking efficient and dependable safety sensors in the realm of machine safety, the BNS333 from Schmersal stands out in its category for performance and durability.
